Application of Sfere Elecnova Power Quality Products in the National Food Safety Hengqin Innovation Center Project 2023 Nov.23

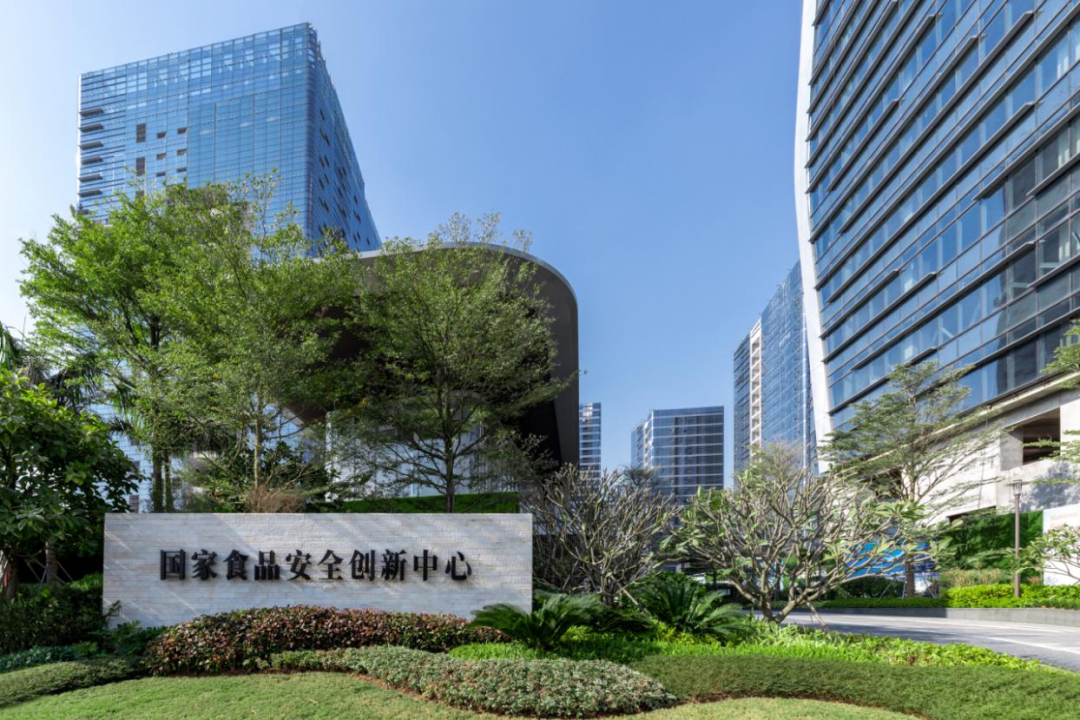

The National Food Safety (Hengqin) Innovation Center project is located in Hong Kong Macao Avenue, Hengqin New District, Zhuhai City. Covering an area of approximately 86000 square meters, construction area of about 250,000 square meters. The overall structure consists of nine main buildings, divided into two office buildings, three modular office buildings, and four apartments. The center focuses on building a high-end industrial park that integrates business, office, commercial blocks, and apartments. Only by ensuring safe, continuous, and reliable high-quality electricity resources can enterprise users have a safer, more reliable, and efficient electricity consumption experience, significantly improving operational and production efficiency, and achieving high-quality development of the park.

The application of nonlinear power equipment (frequency converters, UPS, switching power supplies, etc.) in industrial and household electrical loads is becoming increasingly widespread, and such equipment will generate a large amount of harmonics. According to the load characteristics, the project adopts a power quality management scheme of SVG static var generator+SFR-M intelligent dynamic harmonic suppression reactive power compensation module, ensuring the stability of the entire power supply system.

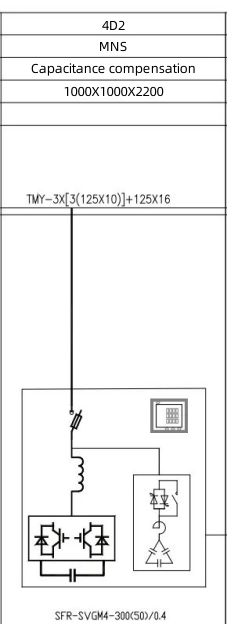

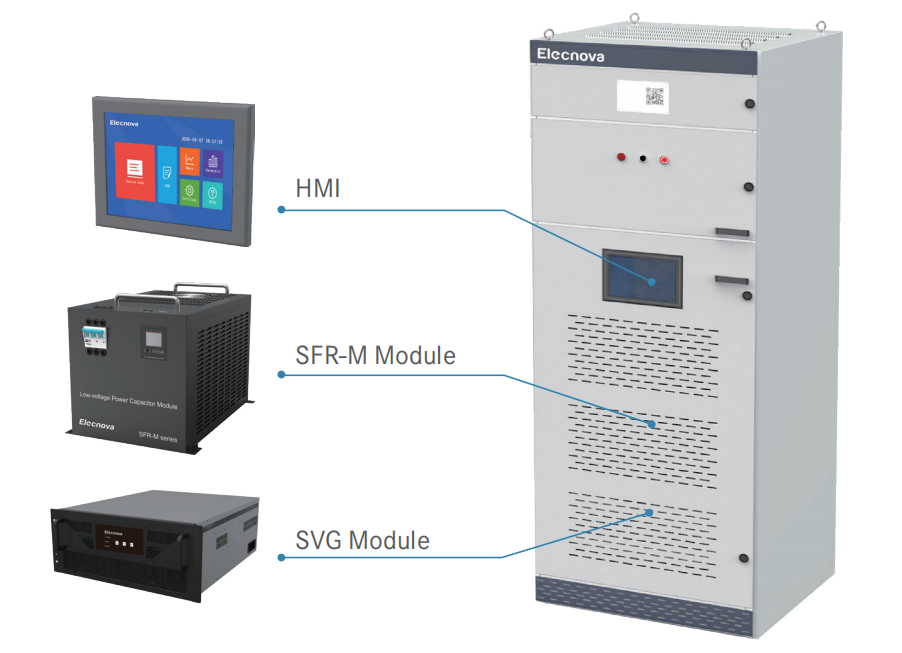

SFR-SVG static var generator module and SFR-M harmonic suppression compensation module are integrated and installed in the same cabinet for coordinated control. The main body uses SFR-M compensation and SVG compensation is finely used, making the product more cost-effective. The four major advantages are as follows:

Intelligent operation: Full response time is less than 10ms, fully modular design, flexible combination.

Intelligent and flexible: The intelligent monitoring module can automatically adjust the output ratio of SVG/ passive module according to the dynamic requirements of the system, while meeting the requirements of compensation.

Flexible Smoothing: Completely linear, dynamic output, smooth and stable, with a power factor always maintained at 0.99, neither over compensated nor under compensated.

Self-diagnosis: It can monitor the real-time status of capacitors, avoiding the capacitor "working with disease" and extending the service life.

Product characteristics

Flexible application solution

Modular design, convenient for expansion, reducing investment waste in the early stage.
Reliable communication mode, achieving seamless connection between SVG and SFR-M compensation module communication.

Comprehensive equipment and system protection

Equipment external electrical fault protection, including busbar short circuit, overvoltage/undervoltage, over/underfrequency, phase sequence error, current reverse sequence, etc.
Equipment internal fault protection, including overcurrent protection, IGBT overheating protection, etc.
Automatic capacity reduction when the working environment exceeds the limit.
Software and hardware current limiting.
Resonance avoidance, automatically moving away from the system resonance point.

Superior filtering performance

Multiple compensation modes can be selected to achieve on-demand distribution of harmonic elimination, reactive power compensation, and unbalanced current compensation.
Full range reactive power compensation.
A comprehensive three-phase imbalance strategy to achieve active/reactive/split phase imbalance compensation.
Three level main circuit, lower power consumption and higher efficiency.
The full response time is less than 10ms, and the control is faster, which is beneficial for improving transient stability.

Humanized human-machine interaction experience

Interactive options include a 7-inch or 10-inch LCD touch screen.
Through the graphical display interface, users can clearly understand the improvement of power quality in the system before and after equipment operation, such as waveform diagram, harmonic spectrum diagram, THDi, THDu, effective value of current, power factor, etc.

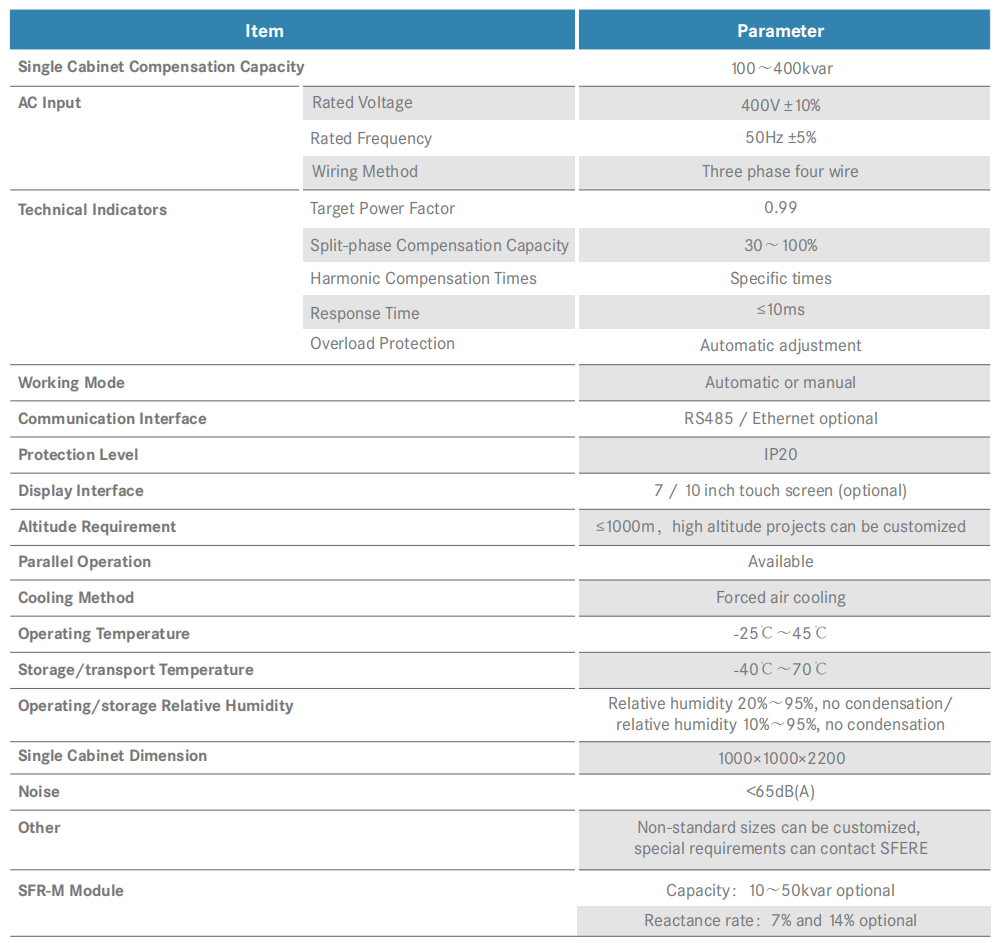

Product parameter
