DC multi function power meter for communication iron tower and PV solar power plant
Author:

2023.04.23


Brief introduction

Direct current(DC) meters have had a comparatively low proportion in the use of power measuring instruments due to their unique usage scenarios. In recent years, the rise of the renewable energy industry such as PV solar power plant and wind power plant, communication iron tower for base station, and the booming energy storage industry drives a tremendous demand for DC multifunctional power meters. In this article you could find the general introduction about the application of ELECNOVA PD195Z-E31/E33 DC power meter.



PD195Z-E31 is available for a single DC circuit measuring, provides U/I/P/kWh, demand and extreme value, PD195Z-E33 maximum  measuring and monitoring 21 DC circuits U/I/P, TOU(Multi-tariff) and kWh(energy consumption). By connecting with the EK1 external D/I module, the PD195Z-E31 can achieve the digital input and relay output functions. It also equipped with a RS485 communication interface for the data integration and with the power management system and energy management system.







Advantages

Multiple current sensing

Multi tariff (TOU)

Plenty external module(LORA、DI/DO、NB-IoT

External module Plug-in installation & auto-ID

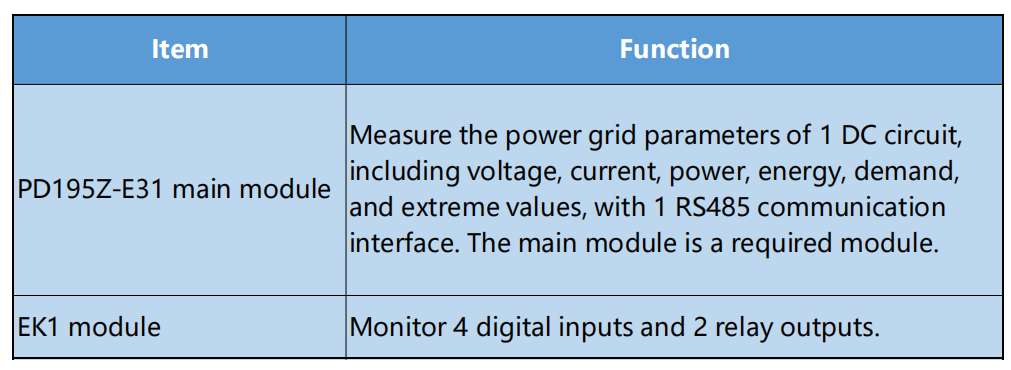

Model Selection









Typical Wiring







Installation







 Application

Communication Iron Tower base station

Solar PV power plant

Power storage system



https://www.sfere-elec.net/product/PD195Z-E33-DC-multi-circuit-power-meter-66.html
