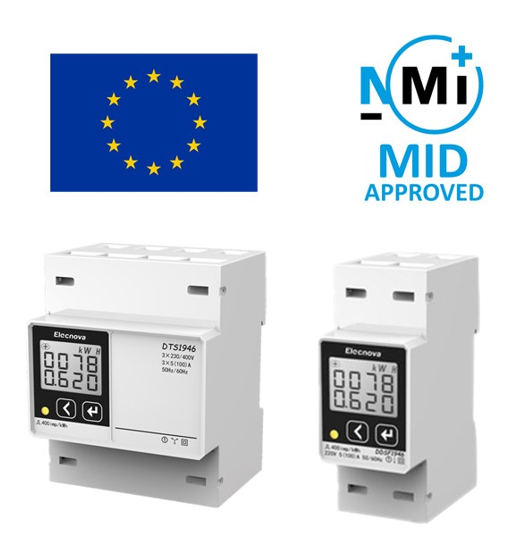

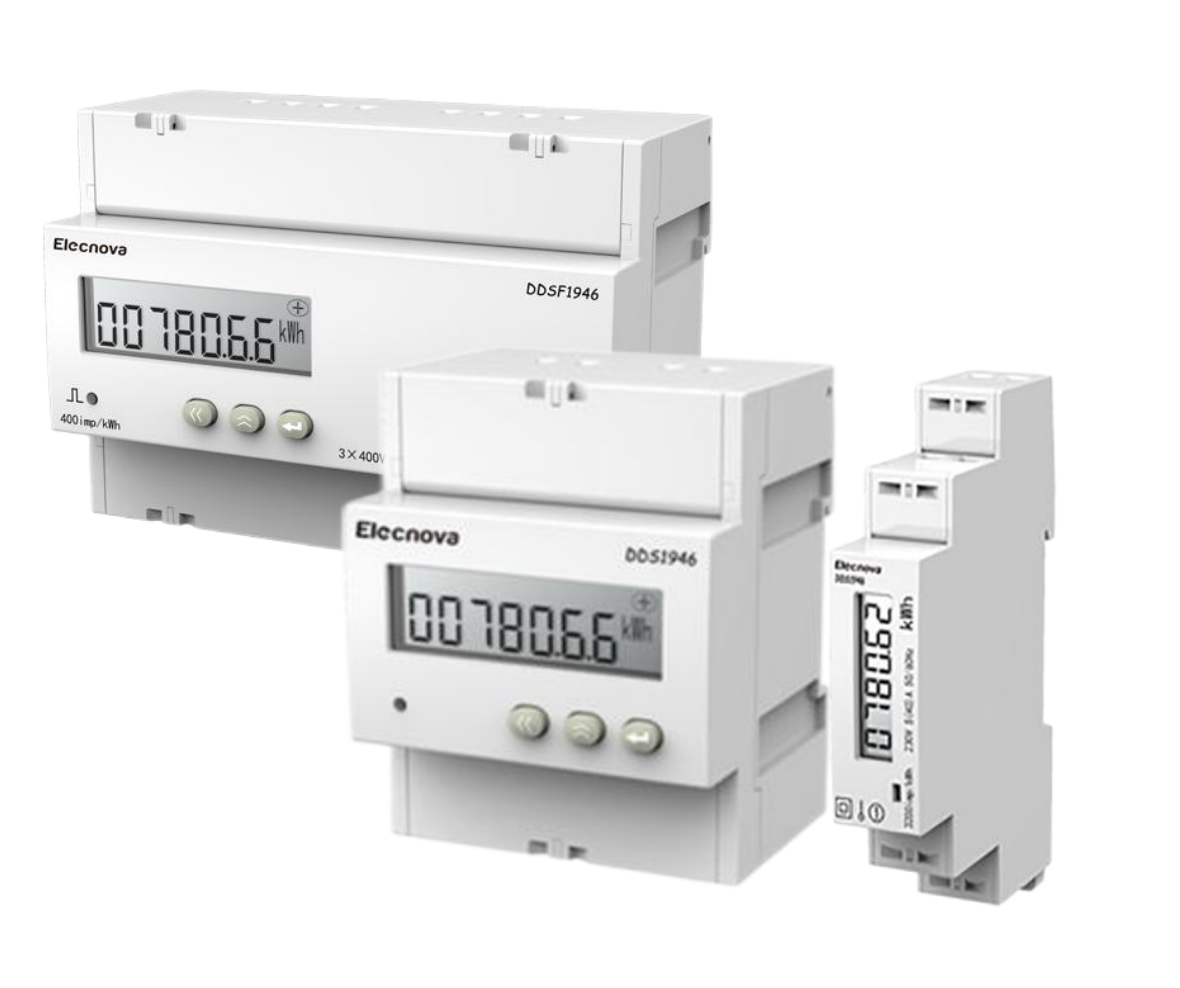

Elecnova din rail mounted energy meter DDS11946/DTS1946 series single-phase /three-phase meter is a digital energy meter complies with the MID certification Class B (2014/32/EU) and CE certification(IEC62053-22). Elecnova din rail mounted energy meter is not only equipped with a LCD display for parameter checking but also has the standard Modbus-RTU communication protocol, the measuring data could be integrated with the EMS system in the building automation application. Besides the fiscal metering for digital buildings, the din rail mounted energy meter are widely use for the smart mobility industry as well.

Features

• Strong and weak electricity separation design

• 100A direct current input

• Bi-directional energy metering

• Multi-tariff energy metering

• Harmonic measuring

• Event record

• Parameter programmable

Application

• Din rail mounted

• Sub-metering

• Remote monitoring of electrical equipment

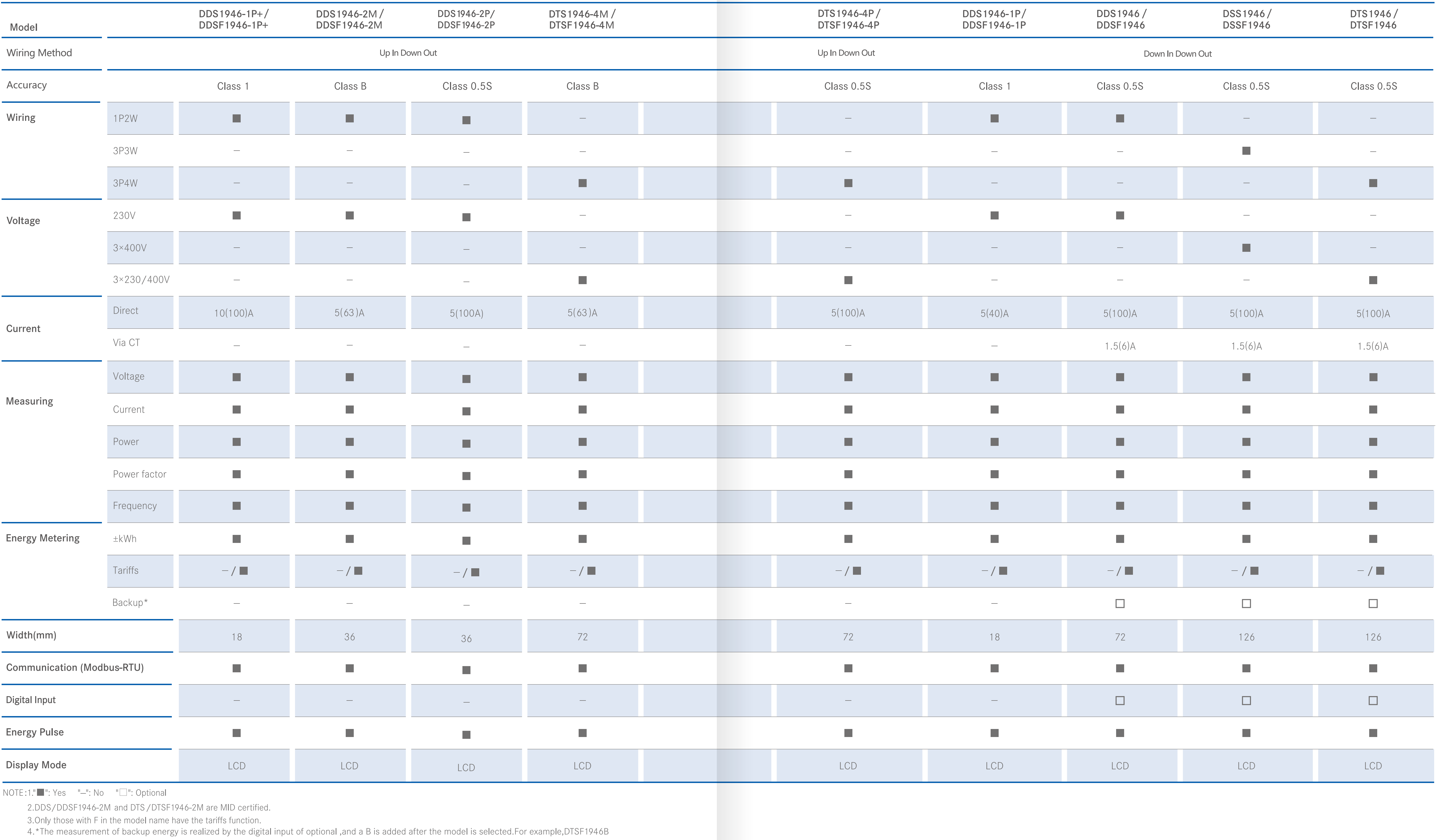

Model selection

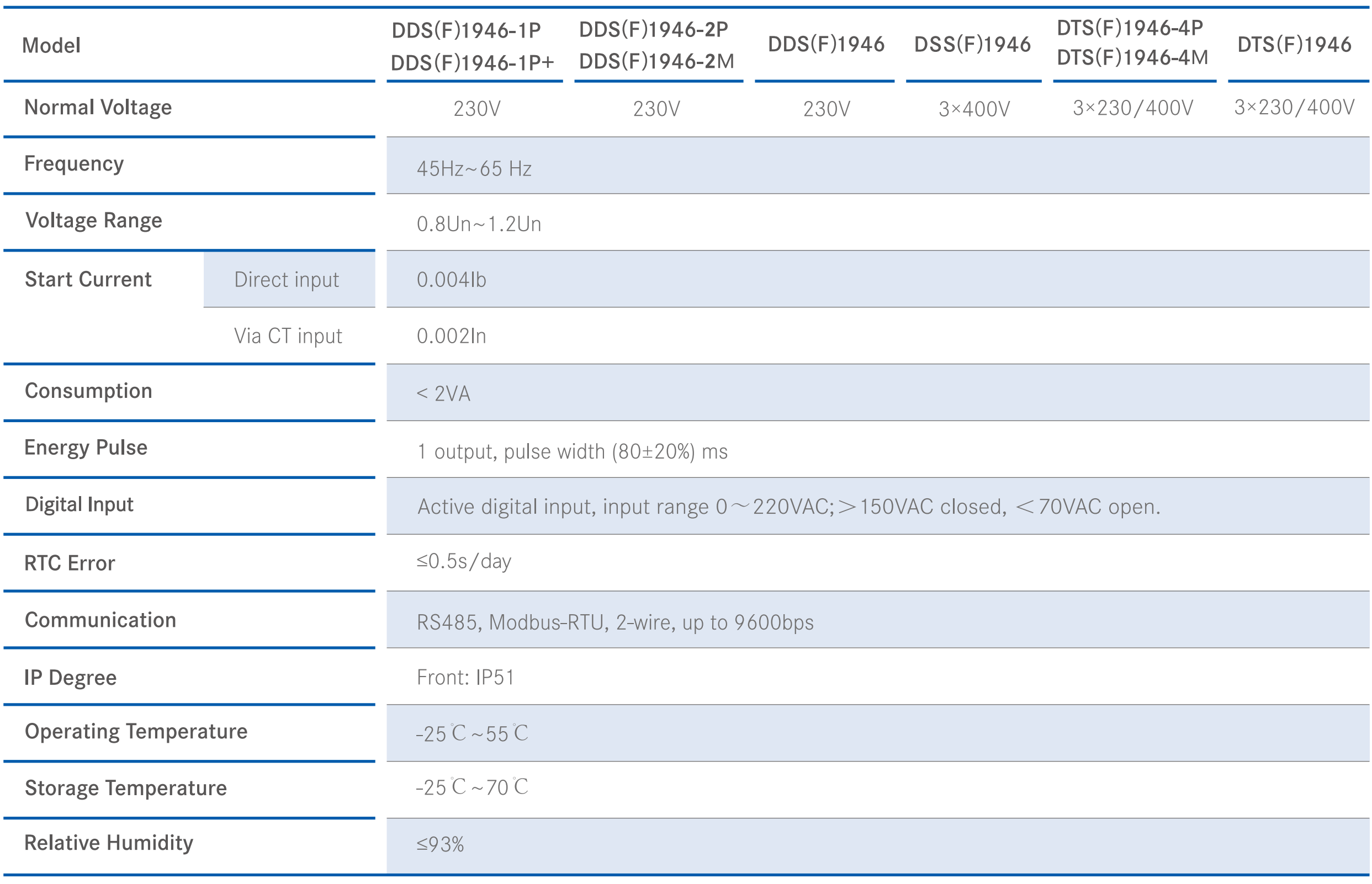

Technical specification

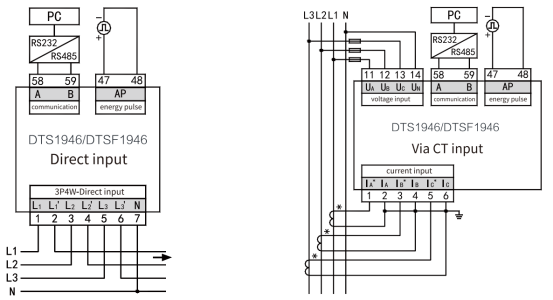

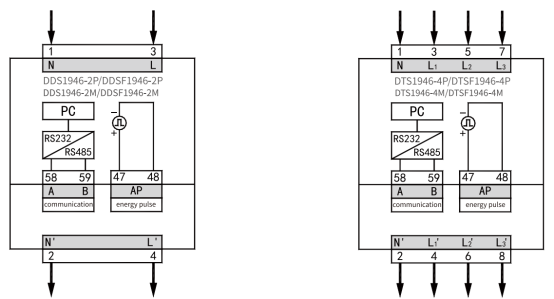

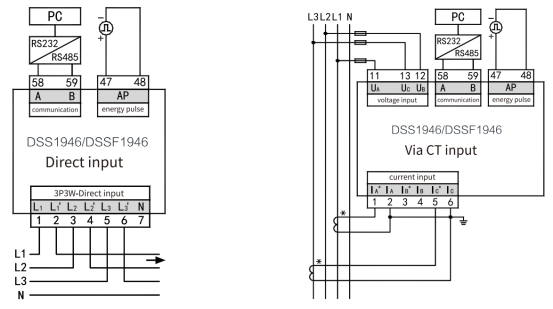

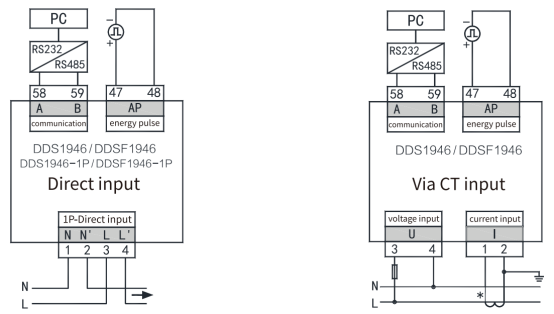

Typical wiring
