With the widespread application of intelligent equipment, the automation level of power distribution system is increasing. In order to make full use of the equipment capacity and improve the security, reliability and stability of the distribution system, users need to configure a matching power monitoring system for centralized and efficient management.

As the middleware of the monitoring system, the communication gateway can be widely used in the integrated automation system of power plants, substations, centralized control stations, distribution network sub station/master station system, regional power grid dispatching automation, airport, tunnel, highway and other power monitoring and other electromechanical centralized control systems.

01 Communication gateway SC series

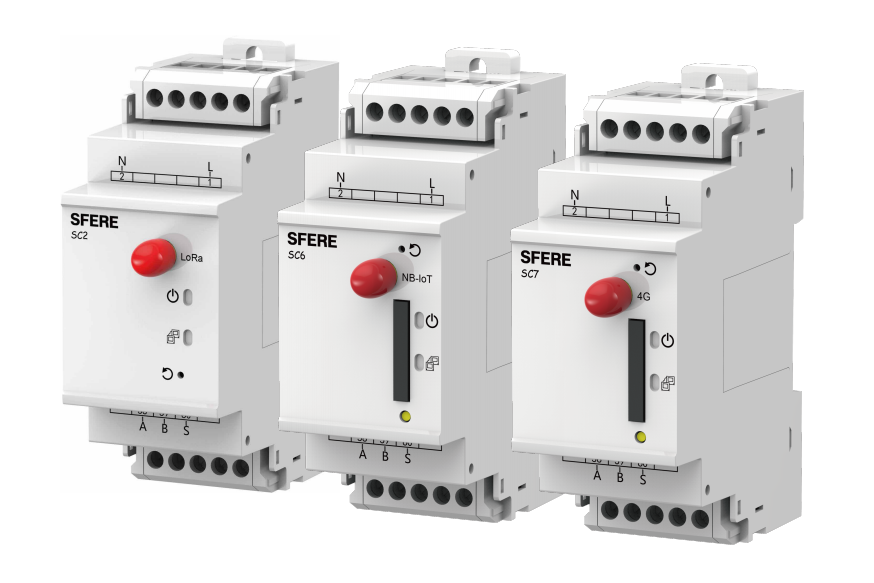

SC series wireless communication modules support transparent transmission modes of LoRa, NB-loT, 4G and RS485. LoRa communication gateway uses serial port to transmit and receive data, which reduces the threshold of wireless applications and enables one-to-one or one-to-many communication.

Among them, the SC2 LoRa communication module is widely used, and its characteristics are as follows:

• Wireless transparent transmission

• Long distance

• Low power consumption

• Disconnection self-recovery

• Support multiple frequency bands

• No additional data traffic costs

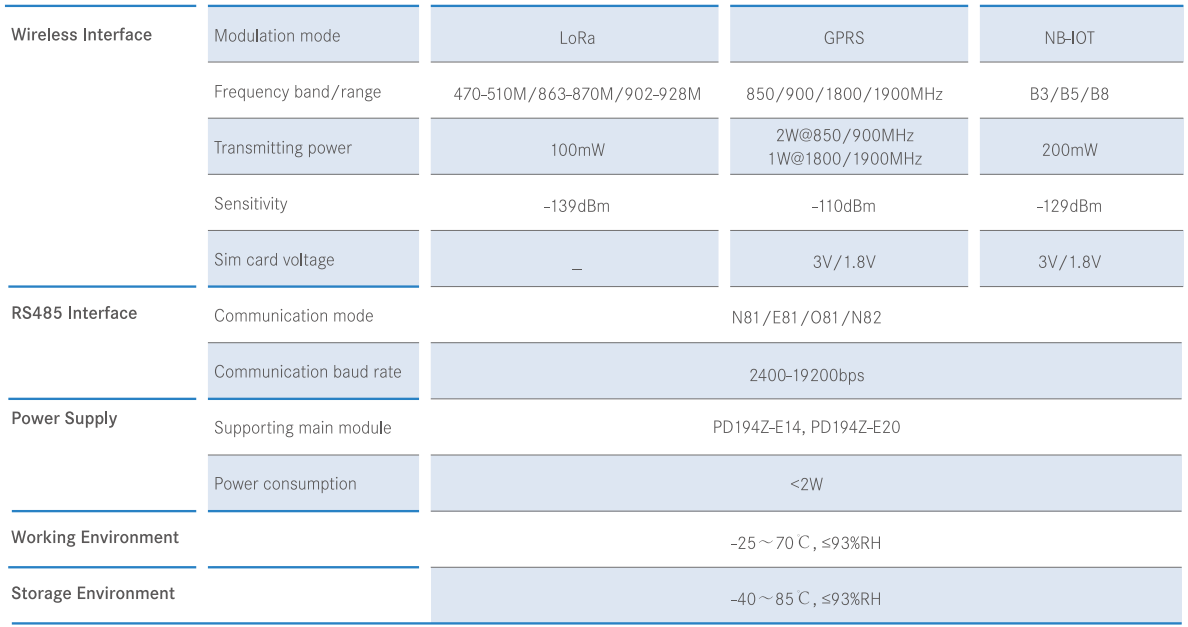

Technical parameter

02 Communication gateway S15

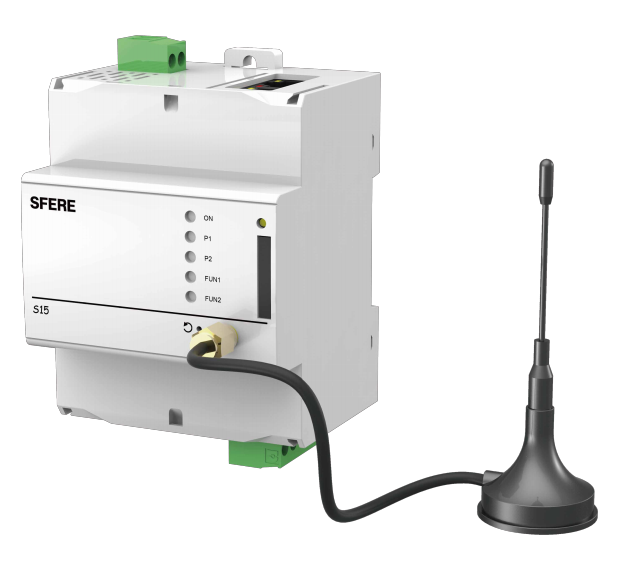

S15 gateway is a small gateway device that can collect multiple communication protocols and upload data to the cloud platform or on-site monitoring system. Its supporting SmartHMI (SmartHMI: Sfere Universal Small Gateway Configuration Tool) supports the configuration of the connected devices, monitoring their data or debugging.

It is mainly used to collect data of intelligent measurement and control, power quality and electrical safety products. The uplink communicates with the monitoring system through the Ethernet port, and uploads to the cloud platform through 2G, 4G and NB loT wireless methods. The downlink realizes wired/wireless networking through RS485 or LoRa.

Characteristic

• Wireless networking

• Rich communication protocols

• Intelligent configuration and debugging

• Dual network port switching function

• Device management

Technical parameter&Model selection

03 Communication Gateway S12

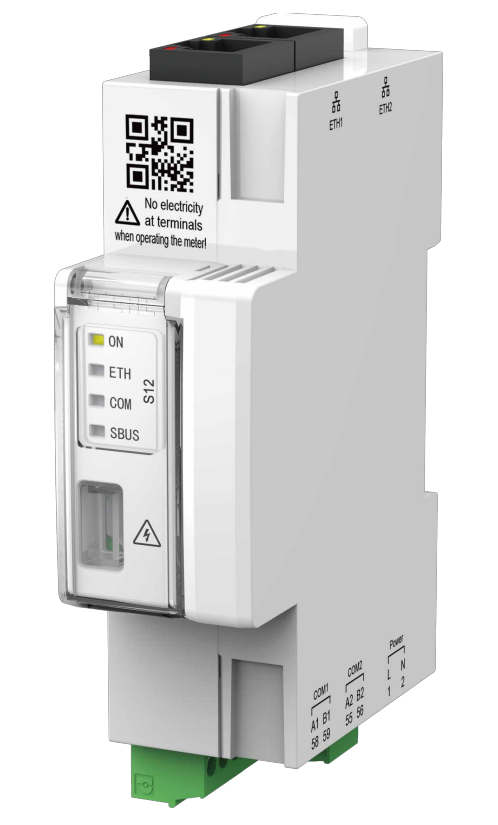

S12 gateway is a small gateway device that can collect multiple communication protocols and upload data to the local monitoring system. Its supporting SmartHMI (SmartHMI: Sfere Universal Small Gateway Configuration Tool) supports the configuration, monitoring or debugging of the connected devices.

It is mainly used to collect data of intelligent measurement and control, power quality and electrical safety products, realize Modbus RTU or DL/T645 communication through RS485 for the down side, and realize Modbus TCP communication with the local monitoring system through Ethernet port for the up side.

Characteristic

• Device management

• Intelligent configuration and debugging

• Dual network port switching function

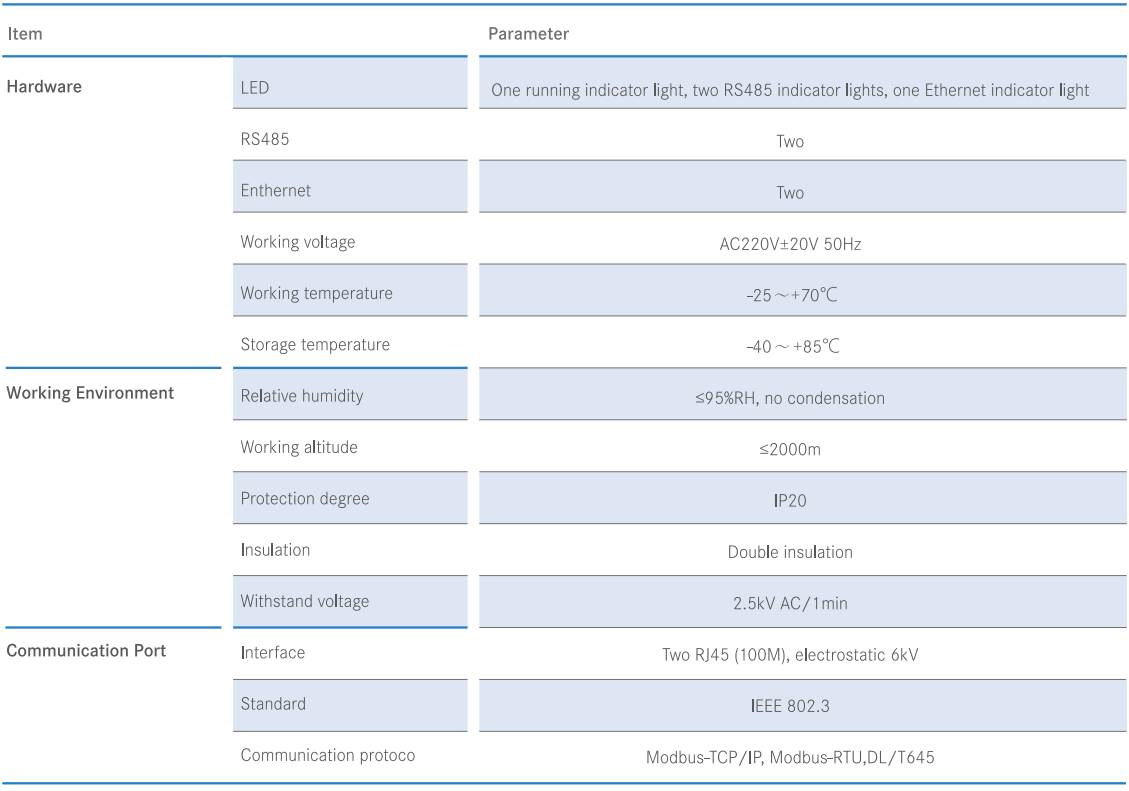

Technical parameter

04 Communication Gateway S20

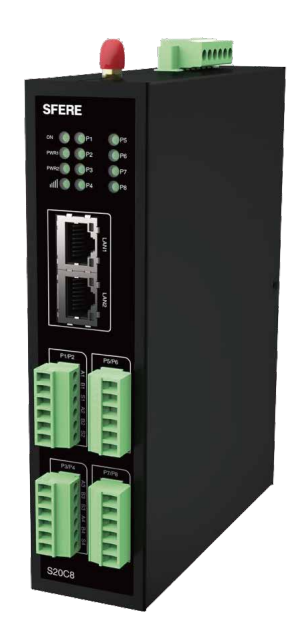

S20 is a universal communication gateway facing the industrial control field. It has multiple functions such as multi-channel data acquisition, multiple protocol conversion, data analysis and calculation, automatic logic control, connection to various platforms, and WEB flexible configuration.

Characteristic

• Device management

• Data calculation

• Protocol conversion

• Offline cache

• History record

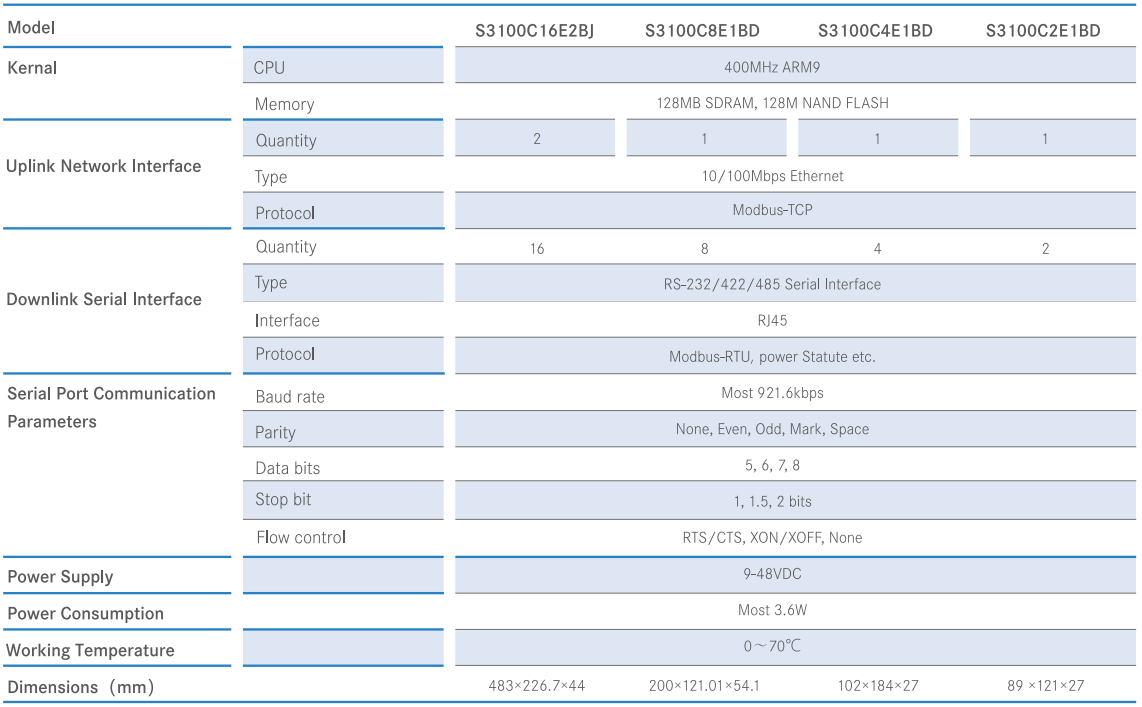

Technical parameter

Reasonable and effective use of the gateway can obtain information from equipment and other links, provide real-time data to the power monitoring system (improve the practicability and effectiveness of information), and can timely conduct remote development and maintenance, provided that you have appropriate security clearance authority.

In addition, due to the wide variety of industrial Ethernet protocols, information may need to be converted and conversed between multiple protocols. Some industrial-grade gateways can realize the interactive transmission of information between wired protocols and wireless protocols.
