Sfere700 multi-circuit monitoring system

The Product Name:
Sfere700 multi-circuit monitoring system
The Product Type:
Multi-circuit monitoring system
Inquiry:
Corresponding field:
smart building smart metering smart building energy solutions device-to-infrastructure


Model
Sfere700-M1
Sfere700-M2
Sfere700-M3
V/A/F/P/Q/S/PF
Demand
Max./Min./Avg.Value
Fundamental V/A/P/Q/S/PF
-
-
±kwh/±kvarh/±kvah
Four-quadrant Reactive Energy
Tariff Energy
-
Fundamental Energy
-
-
THD
Harmonics V/A
-
1st-63rd
1st-63rd
Unbalance
-
Crest factor/k Factor
-
Flicker
-
-
Transient
-
-
Demand Record
-
Max./Min./Avg.record
-
Off-limit Record
-
SOE Record
-
Digital Input
2
2
2
Relay Output
1
1
1
Note:“■”:Yes       “-”:No


Product Name: Sfere700 multi-circuit monitoring system

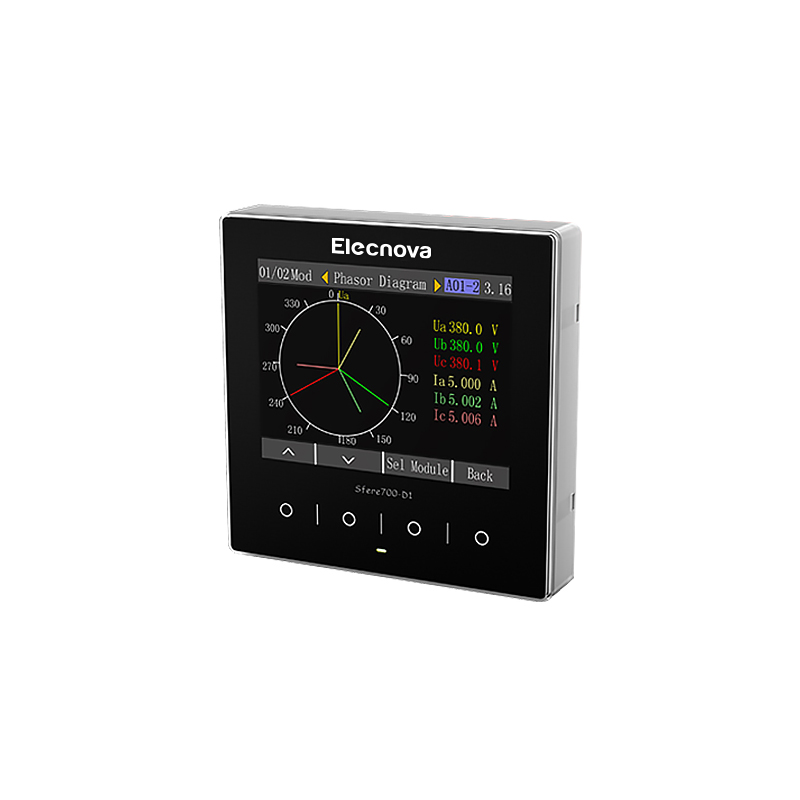

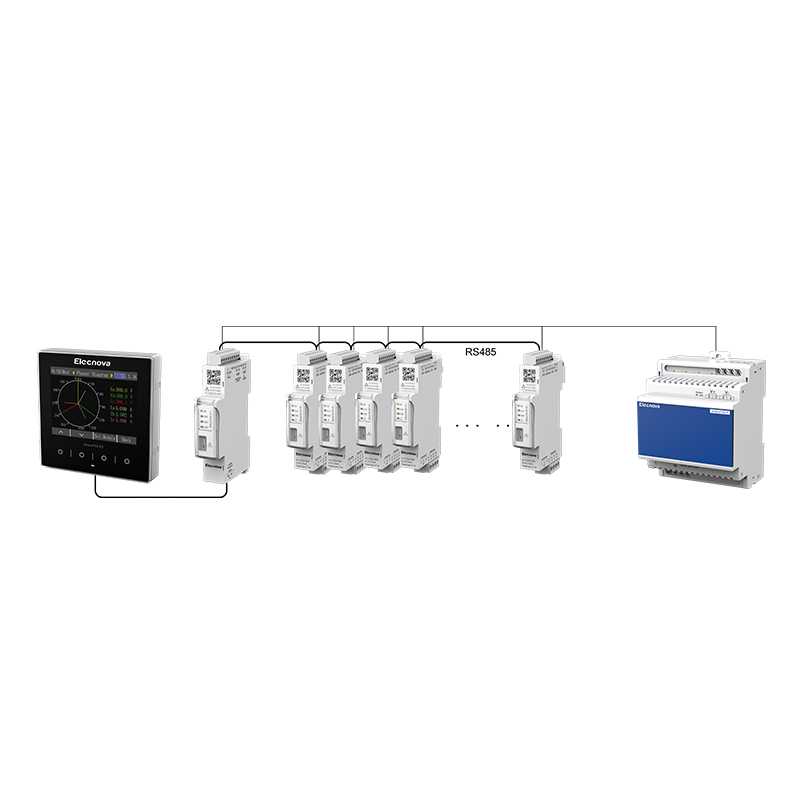

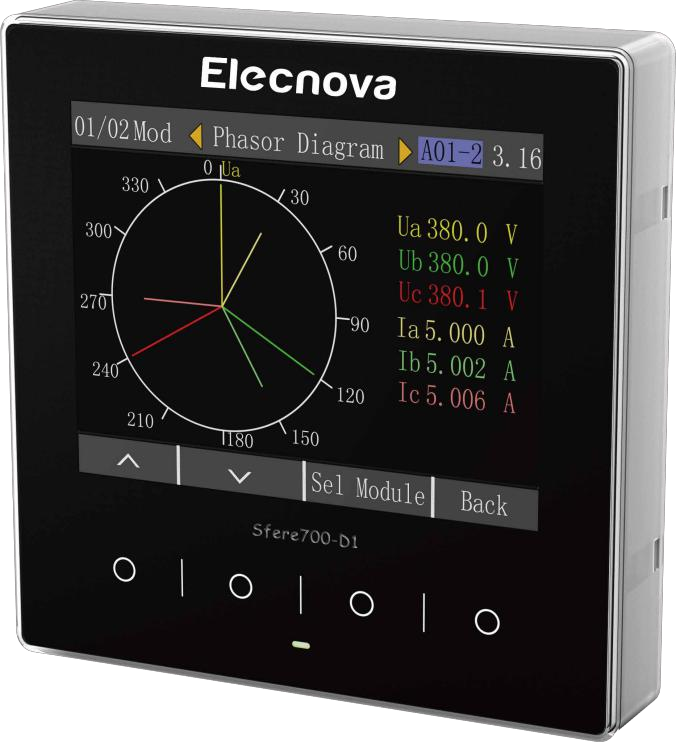

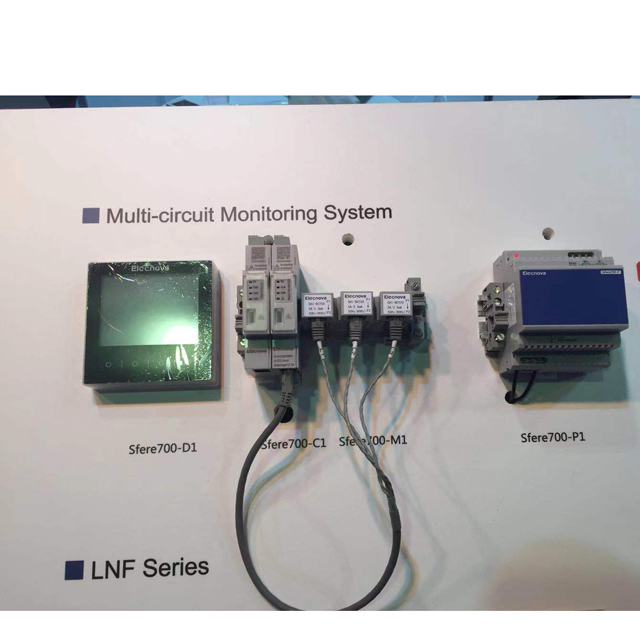

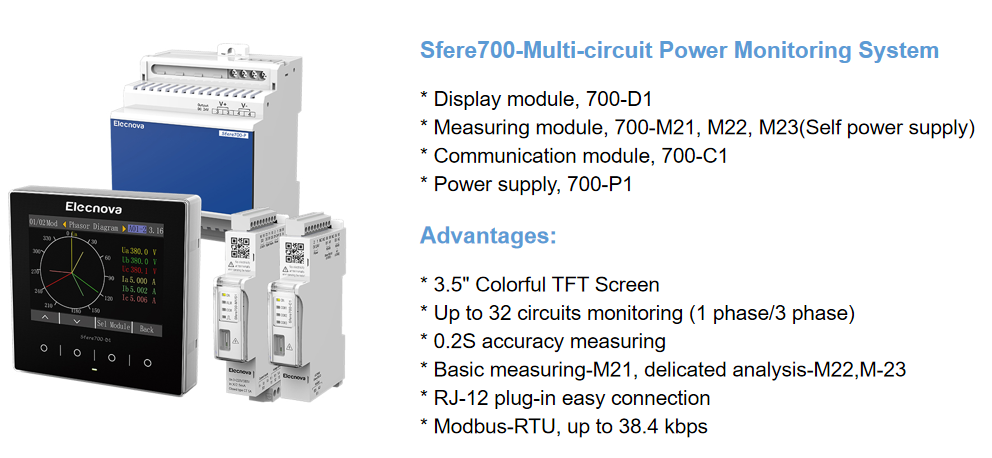

Sfere700 multi-functional power analyzer is an intelligent power quality monitoring device for up to 32 circuits multi-circuit measuring. Modular design including measuring module, communication module (wifi, GRPS, Modbus-RTU), power supply module with DV 24V. Two types of current transformer, Solid core and split core, are available, the input current from 5A to 600A, Rogowski coil up to 3000A.  It’s widely using for the 1phase or 3 phase industrial or residential purpose. It has multi-languages display, 3.5” TFT colorful screen and high waterproof IP67. Harmonic up to 63rd
