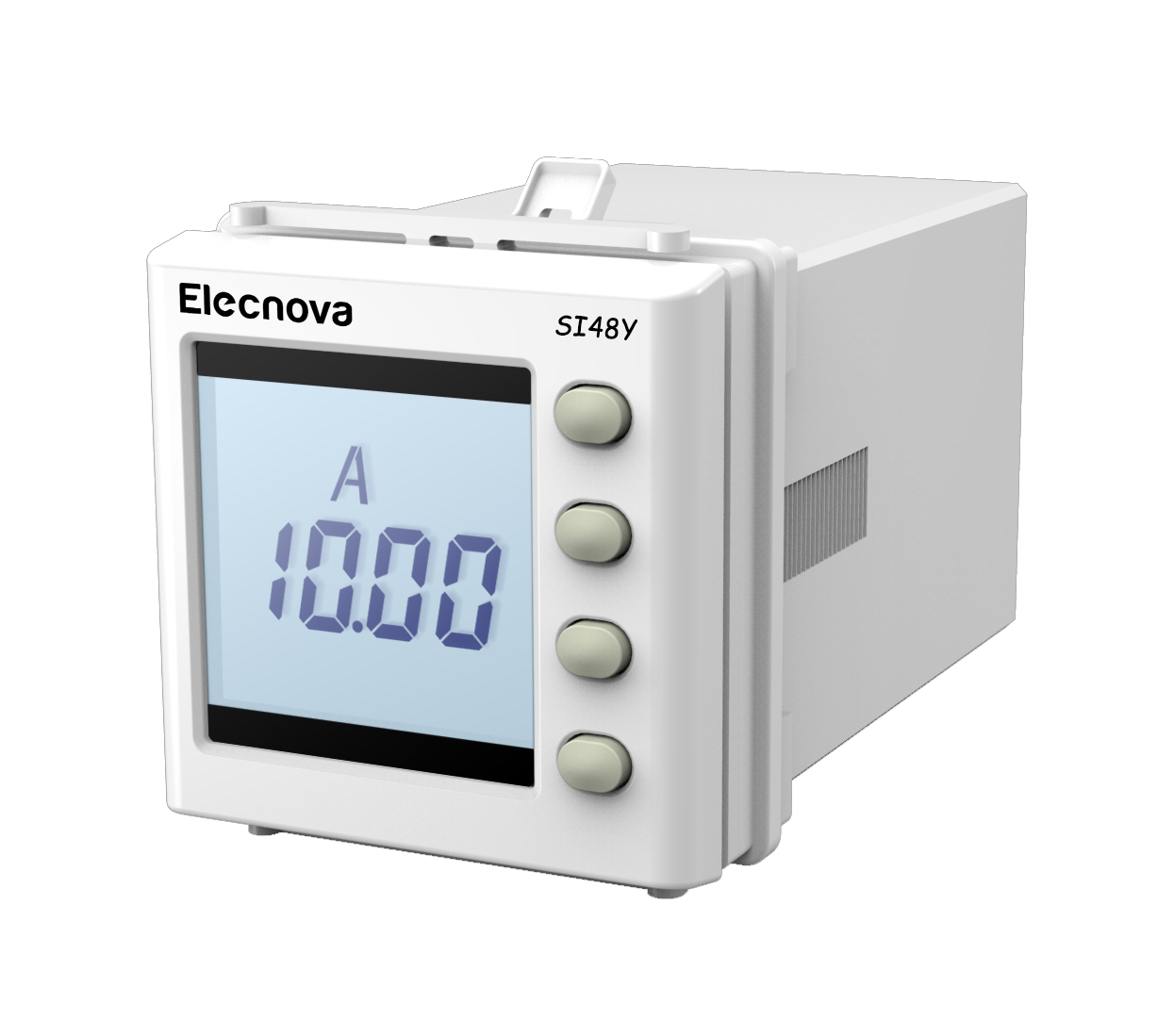

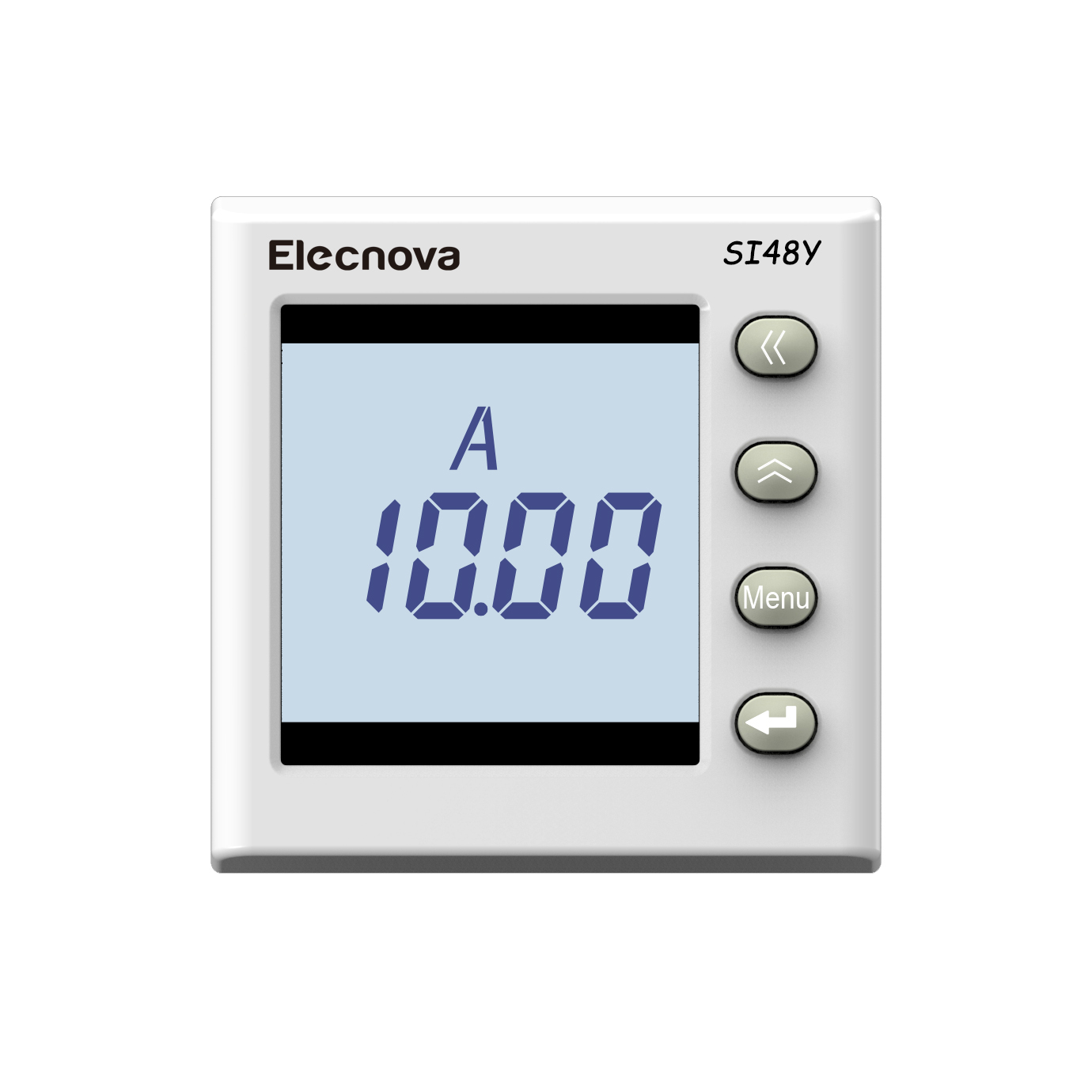

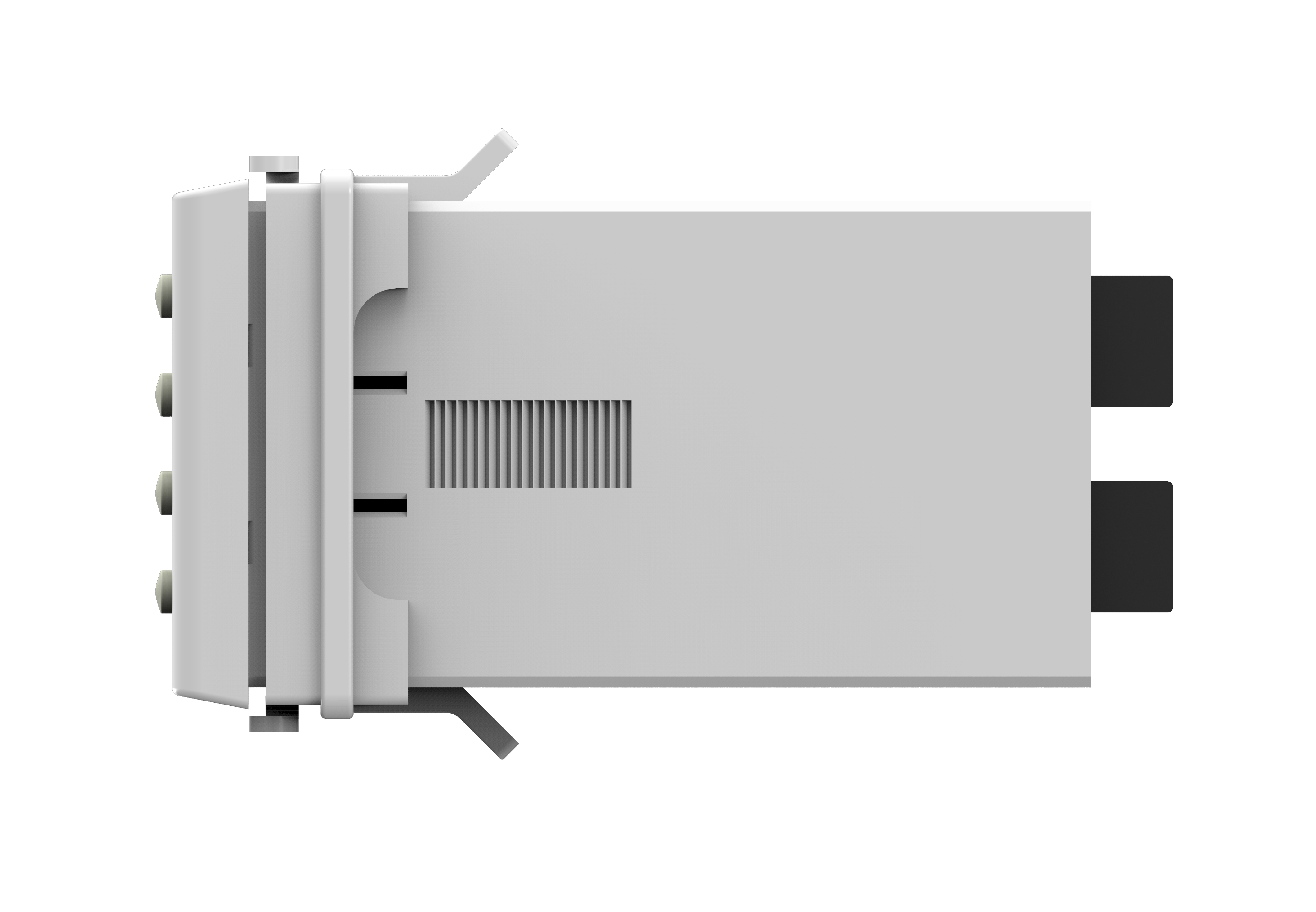

SI48Y Digital power meter

The Product Name：: SI48Y Digital power meter

The Product Type：: Digital Power Meter

Inquiry：

Corresponding field：: power monitoring device power measuring device advanced manufacturing smart equipment smart building

Parameters

Specification

User's Manual/Certification

Accuracy		0.5%(default),0.2%
Data update rate		1s
Input	Current	Rated value:AC 1A,5A
	Voltage	Rated value:AC 100V,220V,400V etc
	Overload	Continuous:2 times of rated value
	Frequency	45~65Hz
Safe Power Supply	Range	AC 80~270V 50/60Hz,DC 100~350V
Safe Power Supply	Consumption	≤5VA
Digital Input		2 dry contact inputs,Isolation:2kVAC
Relay Output		2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
Analog Output		dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
Communication Port		RS485,Modbus-RTU,2-WIRE,up tp 9600bps
Degree of Protection		Front:IP64,Rear :IP20
Operating Temperature		-40℃~70℃(LED),-25℃~70℃(LCD)
Storage Temperature		-45℃~85℃(LED),-30℃~80℃(LCD)
Relative Humidity		≤93%RH
Insulation		≥2kVAC
Altitude		≤2500m

Product Name: SI48Y Digital power meter

This is a small size basic single phase/three phase current meter. With it's compact design and up to 0.2% accuracy, the basic current power meter was widely use in the industrial application. By the Modbus-RTU communication protocol, the data could be delivery to the PC and the communication management device.
