Sfere820A Class A Power Quality Analzyer

The Product Name：
Sfere820A Class A Power Quality Analzyer
The Product Type：
Power Quality Measurement
Inquiry：
Corresponding field：
Industrial System Data Transmission Smart Building Smart Metering
b2.png b1.png Parameters b3.png b4.png Specification xz1.png xz2.png User's Manual/Certification



Sfere820A Class A Power Quality Analzyer

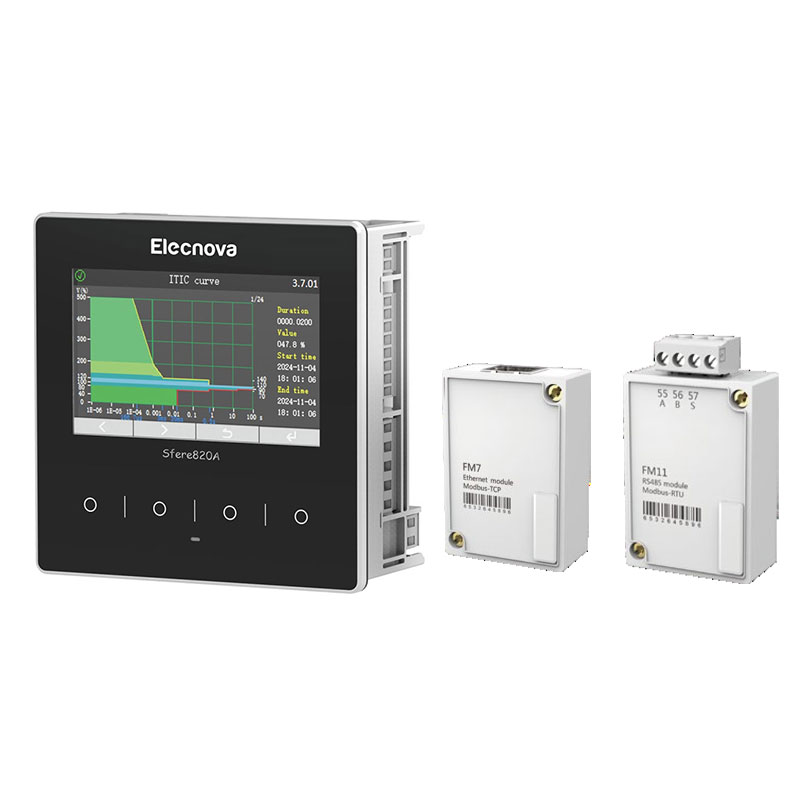

SFERE820A is a 144*144 panel mounted power quality analyzer complied with IEC61000-4-30 standadards. By use an external external module FM24 to achieve the webserver function.


Sfere820A Class A Power Quality Analzyer

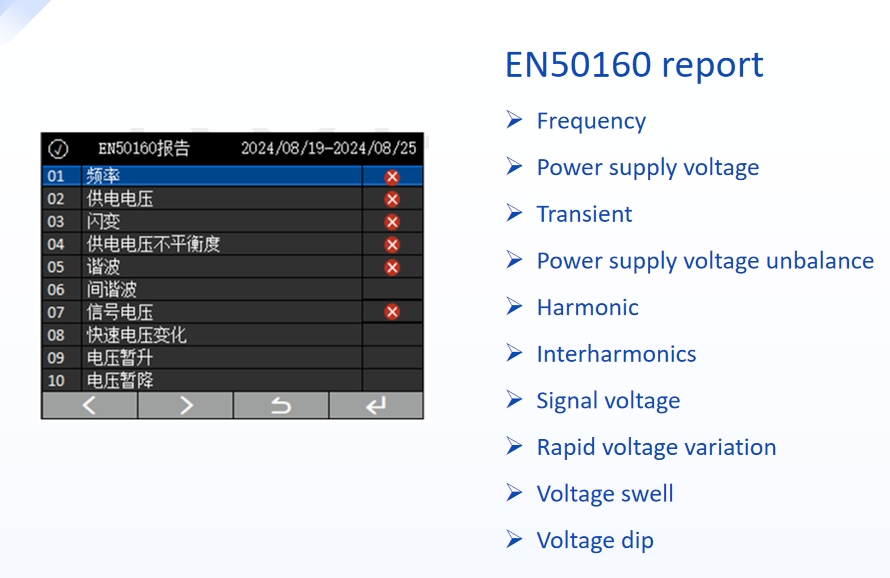

EN50160 report

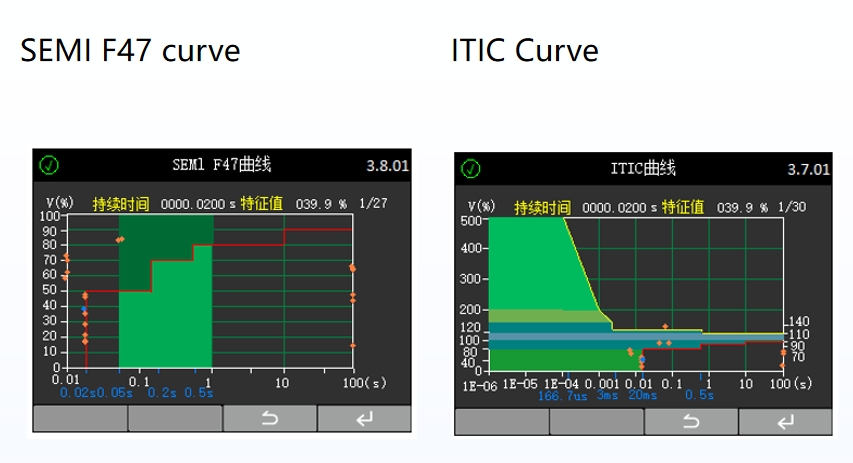

SEMI F47 curve ITIC curve

Sfere820A Class A Power Quality AnalzyerSfere820A Class A Power Quality Analzyer

Sfere820A Class A Power Quality Analzyer

Country specific Approal

  1. Logo

  2. Approval

    CE
  3. Ref.Standard

  4. Cerificate No.

  5. Download


User's Manual

  1. Product Name

    Sfere820A Catalogue
  2. Download


User's Manual

  1. Product Name

    Sfere820A User Manual
  2. Download
