Sfere720C multi-functional power meter

The Product Name:
Sfere720C multi-functional power meter
The Product Type:
Multi-functional power meter
Inquiry:
Corresponding field:
industrial wireless system data transmission smart building smart metering

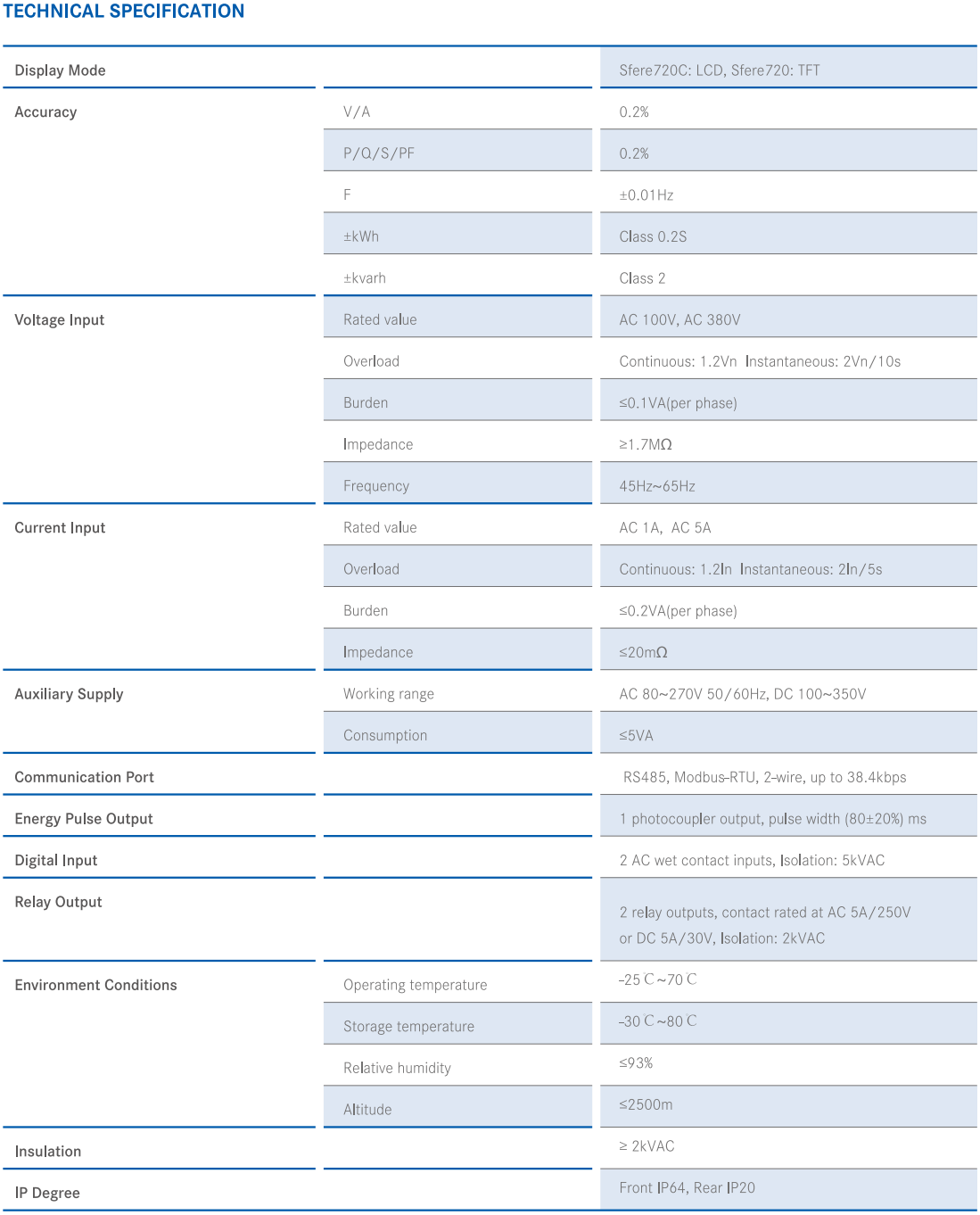

Display Mode

Sfere 720C: LCD, Sfere720:TFT


Accuracy
V/A
0.2%
P/Q/S/PF
0.2%
F
±0.01Hz
±kWh
Class 0.2S
±kvar
Class 2


Voltage Input
Rated value
AC 100V/ 380V
Overload
Continuous: 1.2Vn Instantaneous: 2Vn/1010s
Burden
≤0.1VA(per phase)
Impedance
≥1.7MΩ
Frequency
45Hz~65Hz


Current Input
Rated value
AC 1A/5A
Overload
Continuous: 1.2In Instantaneous: 2In/5s
Burden
≤0.2VA(per phase)
Impedance
≤20mΩ
Auxiliary Supply
Working range
AC 80~270V 50/60Hz, DC 100~350V
Consumption
≤5VA
Communication Port

RS485, Modbus-RTU, 2-wire, up to 38.4kbps
Energy Pulse Output

1 photocoupler output, pulse width(80±20%)ms
Digital Input

2 AC wet contact inputs, Isolation: 5kVAC
Relay Output

2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC


Environment
Operating temperature
-25℃~70℃
Storage temperature
-30℃~80℃
Relative humidity
≤93%
Altitude
≤2500m
Insulation

≥2kVAC
IP Degree

Front IP64, Rear IP20


Product Name: Sfere720C multi-functional power meter

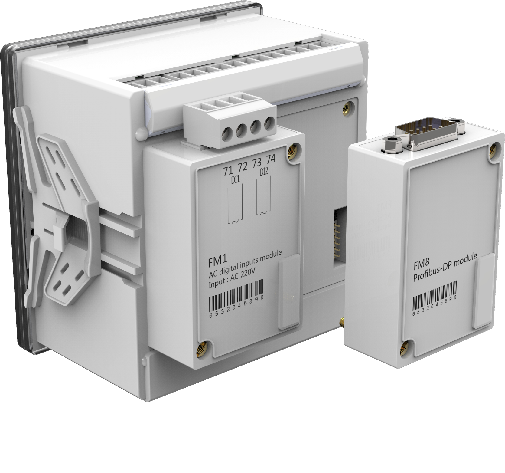

Sfere720C is the family product of the Sfere720 power quality analyzer. It equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720C also can be extended up to 4 externel modules in the back side of the device. In some purticular industrial spot, the analog module could transmit the 0-20mA analog signl to the Sfere720C to access into a complicated industrial control system or establish a independent energy consumption optimized system as well.



FEATURES

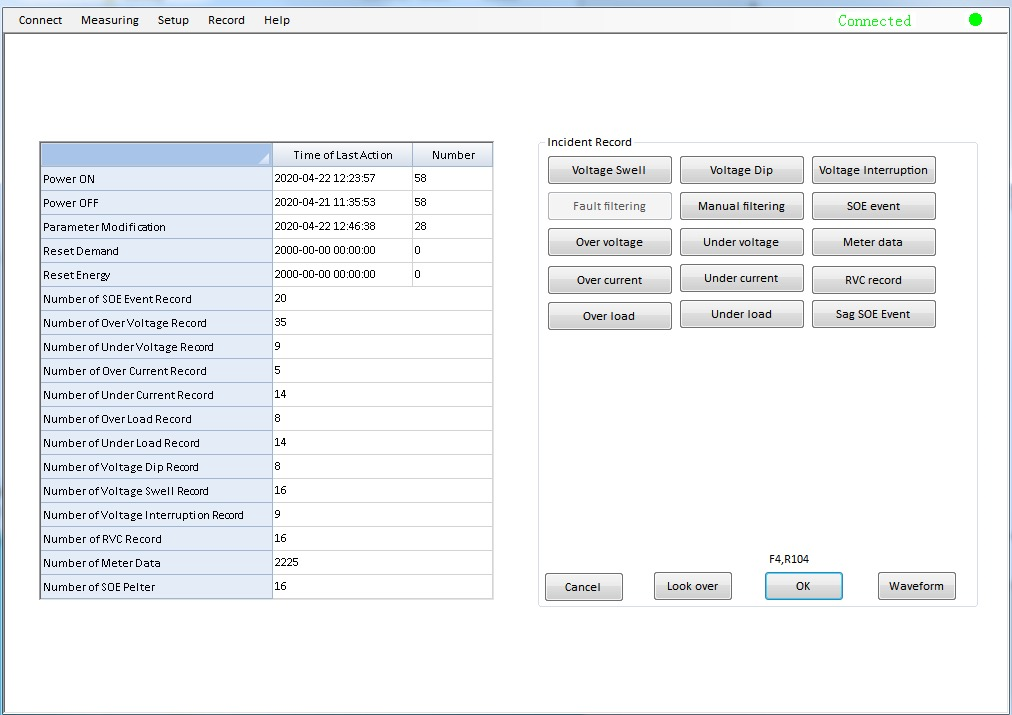

■ 8MB memory, 32,000pcs record
■ Accuracy: 0.2S
■ Measurement: full electrical measuring

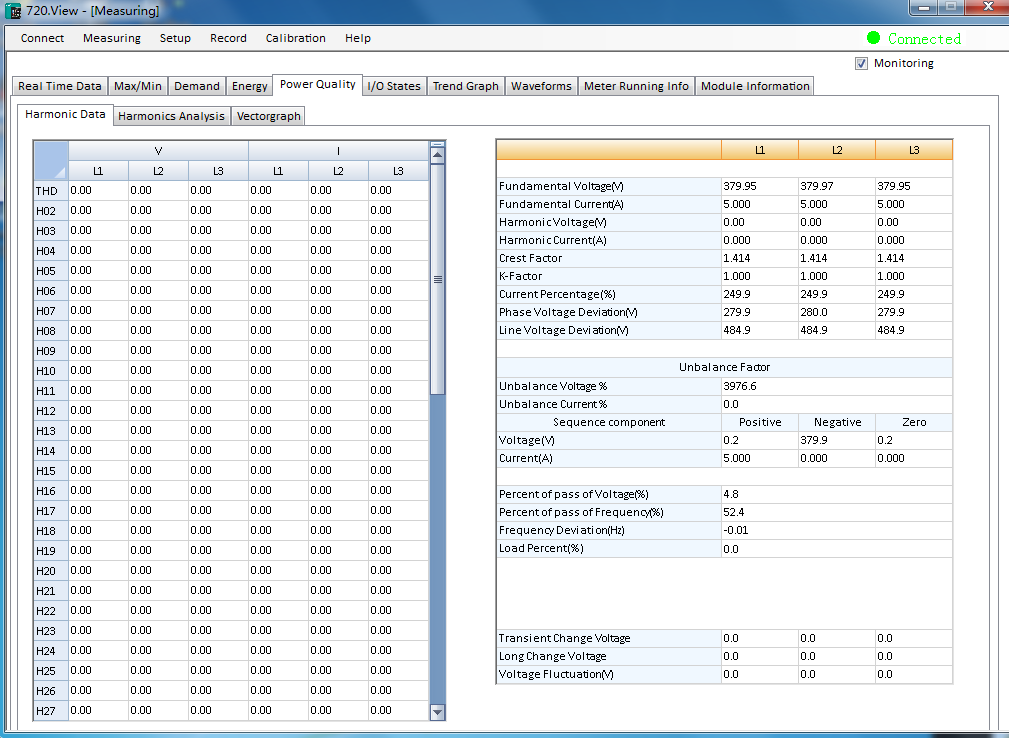

■ Harmonics: up to 51st

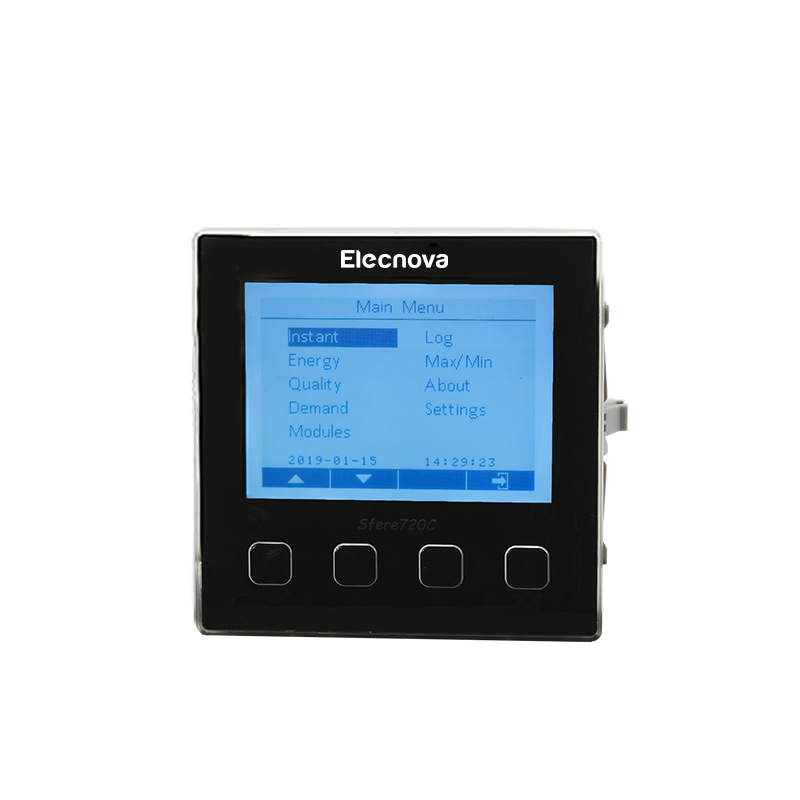

■ Display: LCD

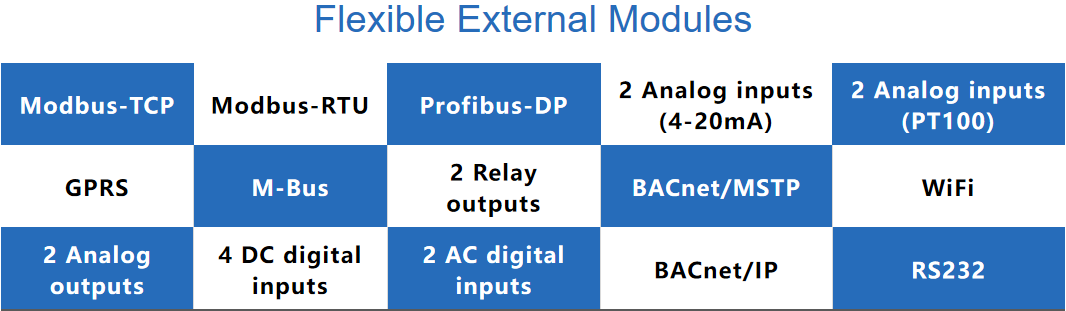

■ Modular design: 12 optional modulars available
