Sfere701 Multi-circuit Monitoring System

The Product Name:
Sfere701 Multi-circuit Monitoring System
The Product Type:
Multi Circuit Power Monitoring
Inquiry:
Corresponding field:
Smart building Multi-circuit monitoring Intelligent rack bus



Product Name: Sfere701 Multi-circuit Monitoring System

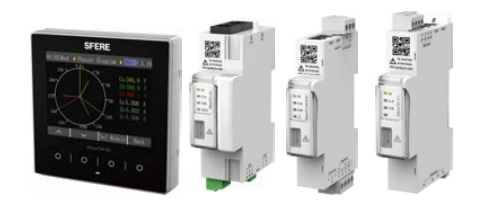

SFERE701 Multi circuit power monitoring system is perfectly match the need for branch circuit measuring of data center and the general multi circuit power monitoring purpose. The SFERE701-D1 allows local visualization the data from the display module, accesses the to measurement over RS485 interface.The temperature & I/O module SFERE701-F4 provides up to 4 channels of the temperature monitoring and digital input. The communication module executes the functionality of a gateway for the data acquisition and transmission by Modbus-RTU. The SFERE701-P1 power supply module provides powered 24 VDC to the functionality modules.

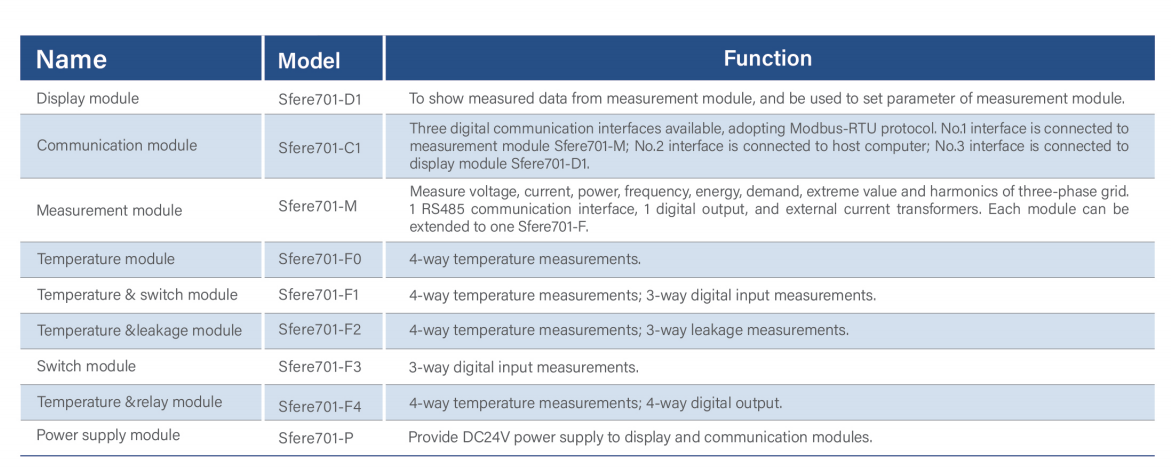

- Communication module

- Measuring module

- Temperature & Electricity leakage module

- D/I module

- Temperature &D/O module

- Power supply module for display and communication

                       1682478087428001TgfS.png          1682478041924513ilMR.png
