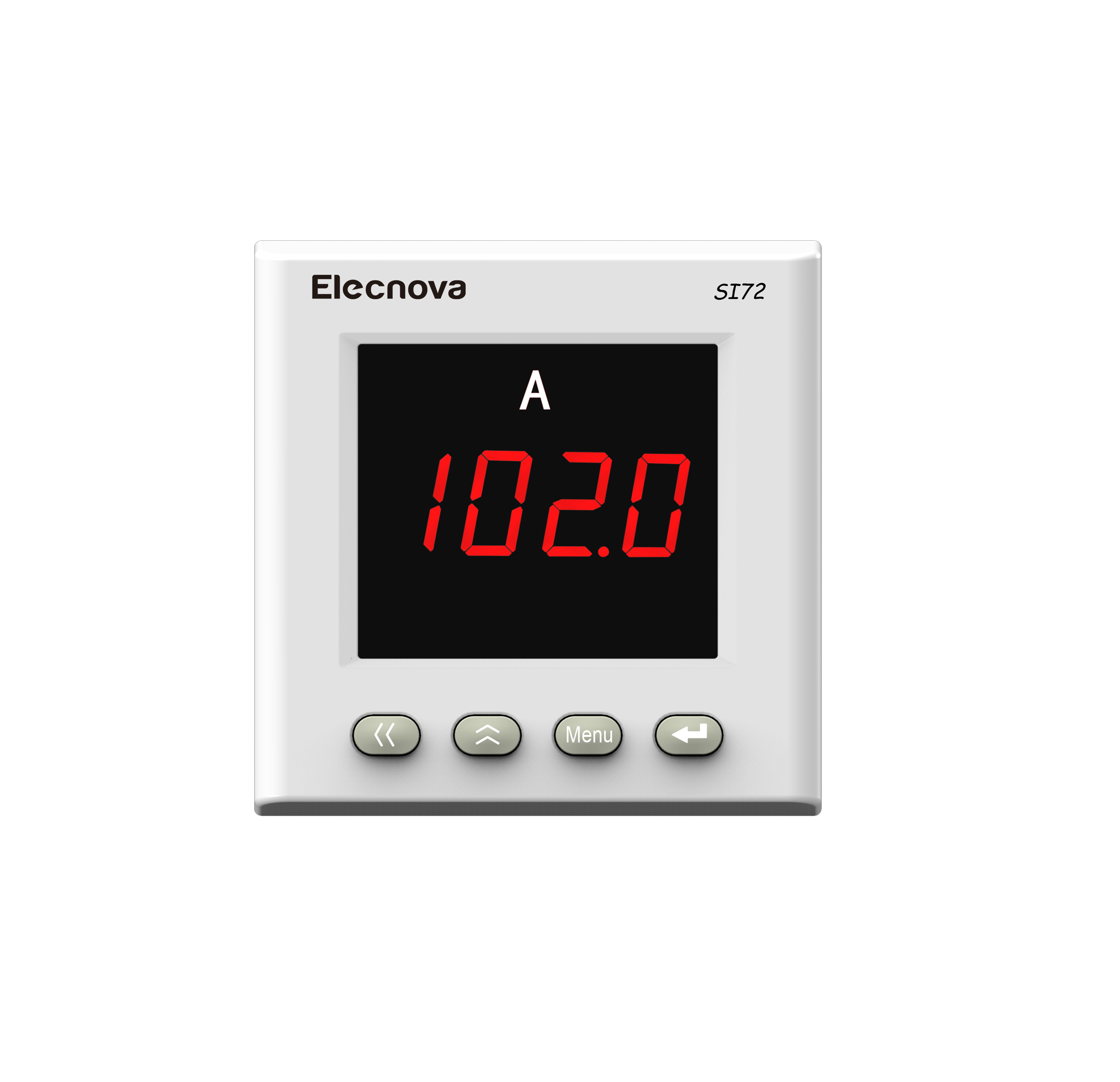

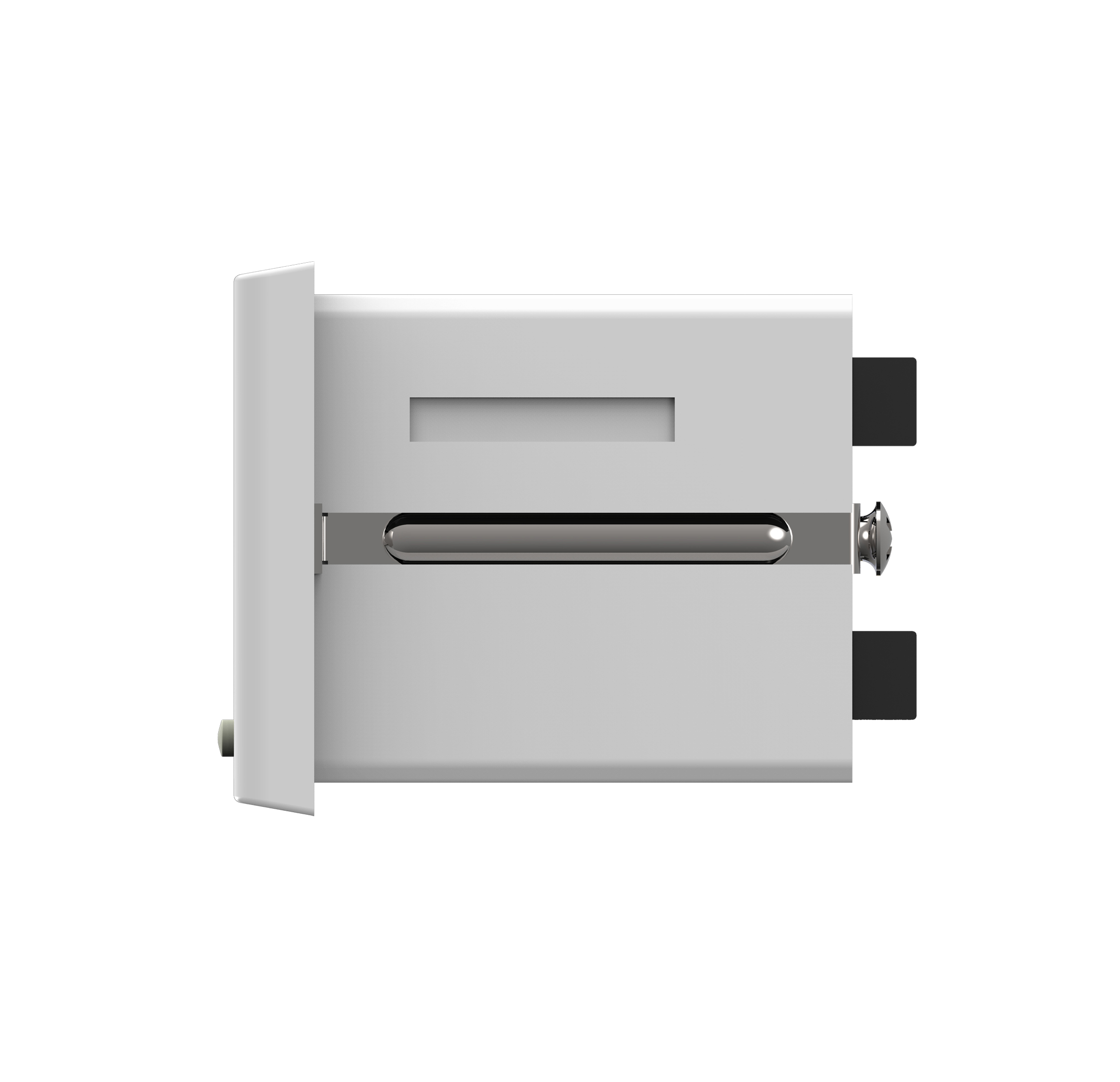

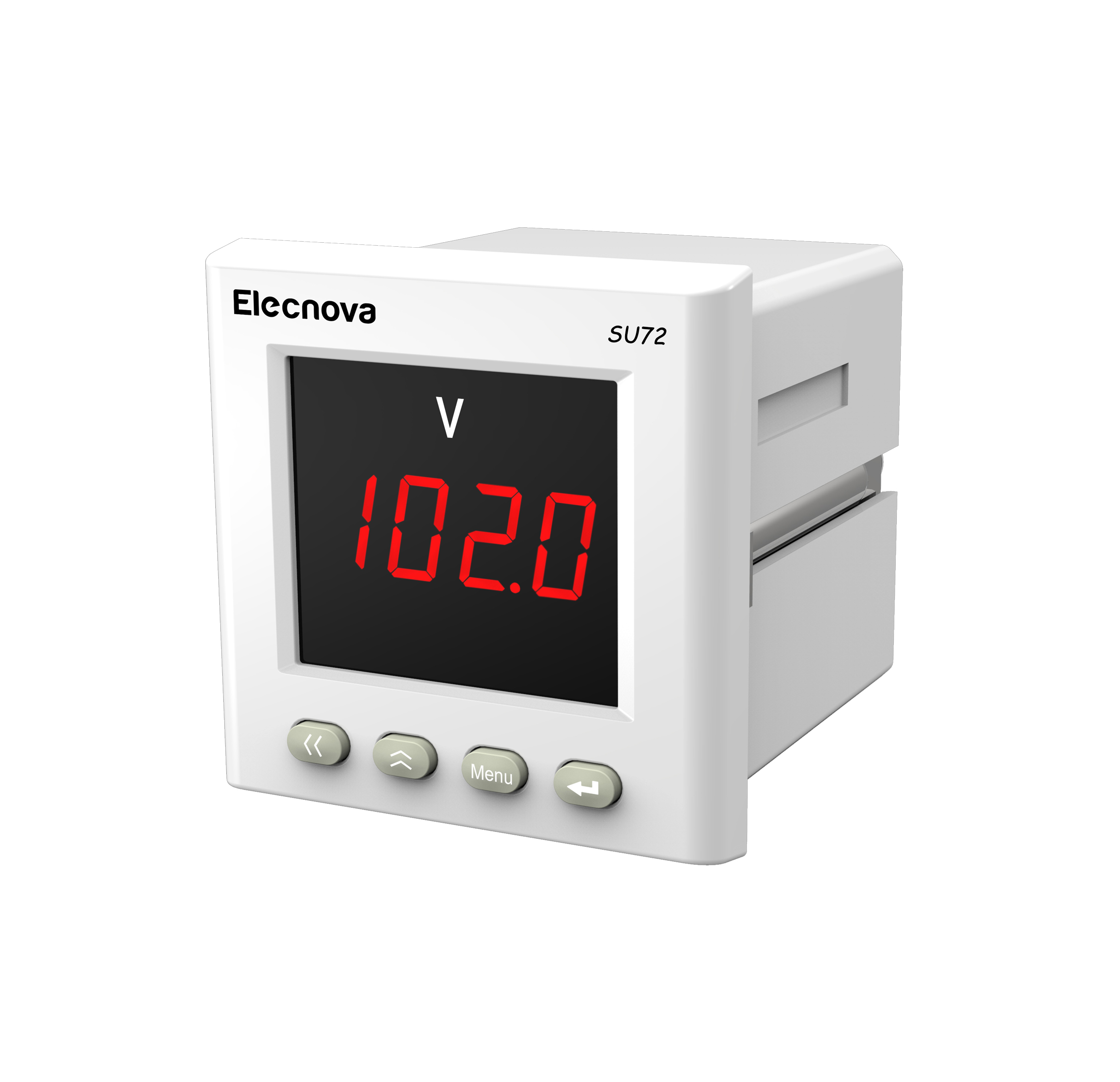

SU72Y Digital power meter

The Product Name：: SU72Y Digital power meter

The Product Type：: Digital Power Meter

Inquiry：

Corresponding field：: power monitoring device power measuring device advanced manufacturing smart equipment smart building

Parameters

Specification

User's Manual/Certification

Accuracy		0.5%(default),0.2%
Data update rate		1s
Input	Current	Rated value:AC 1A,5A
	Voltage	Rated value:AC 100V,220V,400V etc
	Overload	Continuous:2 times of rated value
	Frequency	45~65Hz
Safe Power Supply	Range	AC 80~270V 50/60Hz,DC 100~350V
Safe Power Supply	Consumption	≤5VA
Digital Input		2 dry contact inputs,Isolation:2kVAC
Relay Output		2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
Analog Output		dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
Communication Port		RS485,Modbus-RTU,2-WIRE,up tp 9600bps
Degree of Protection		Front:IP64,Rear :IP20
Operating Temperature		-40℃~70℃(LED),-25℃~70℃(LCD)
Storage Temperature		-45℃~85℃(LED),-30℃~80℃(LCD)
Relative Humidity		≤93%RH
Insulation		≥2kVAC
Altitude		≤2500m

Product Name: SU72Y Digital power meter

The digital ammeter is suitable for single-phase or three-phase current parameter measurement in power distribution systems with LCD display. The 72*72mm front panel size fulfill the regular use for the industrial and commercial application. It's widely use for the smart building power distribution system.

User's Manual

Product Name
SU72Y Digital power meter
