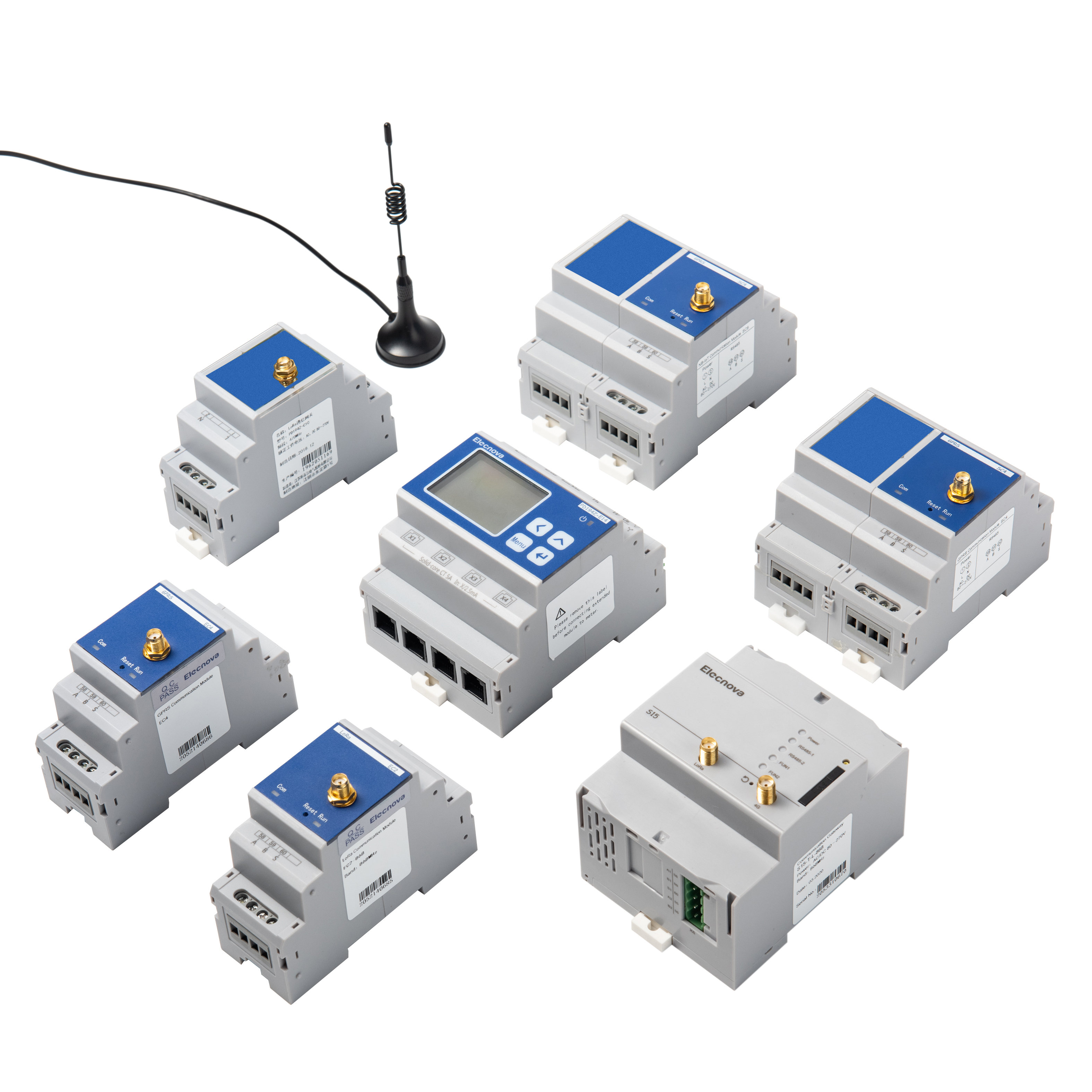

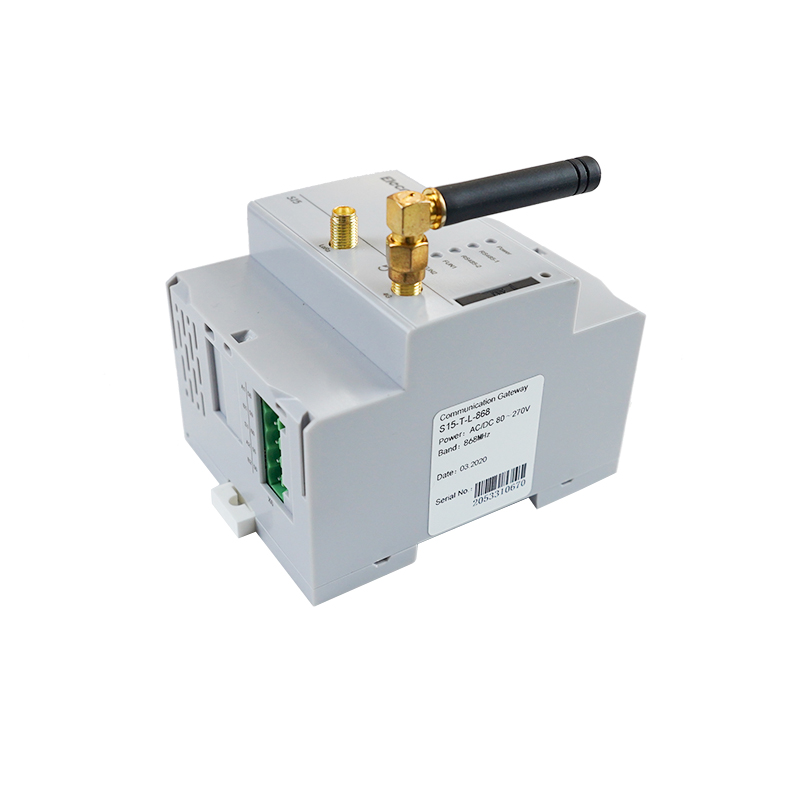

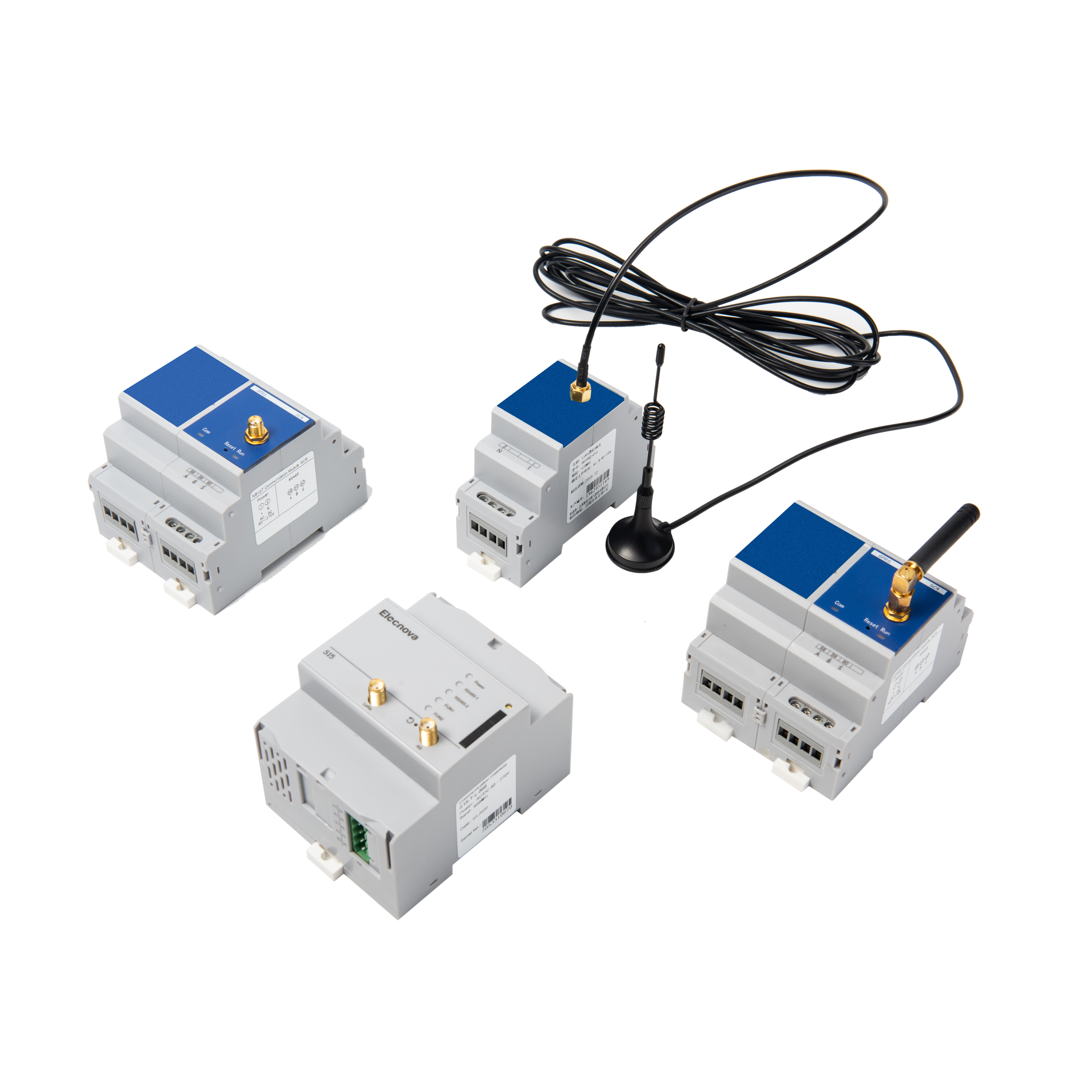

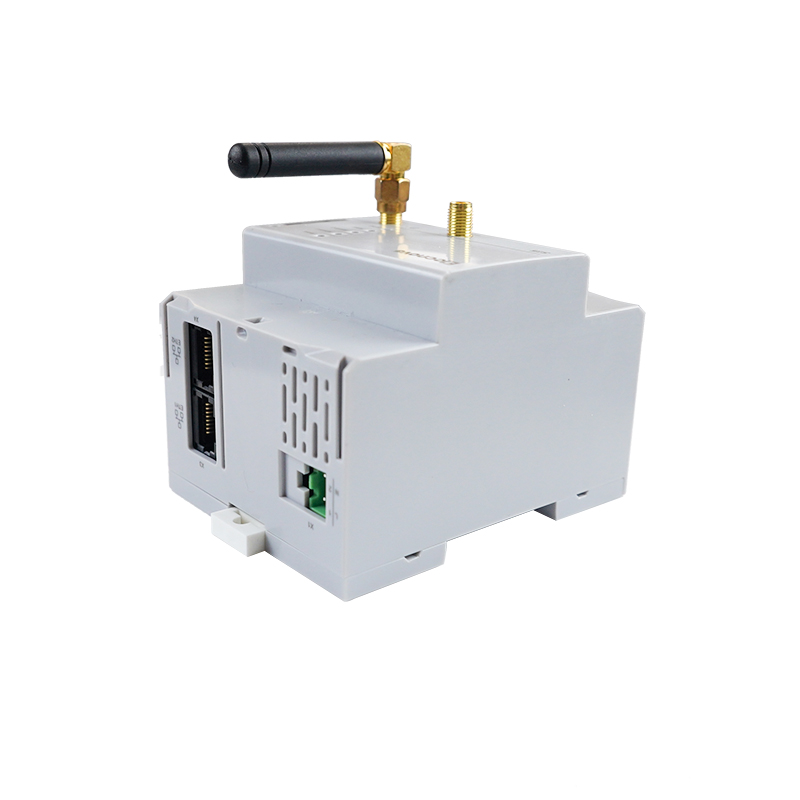

S15 small gateway multiple protocol bus device

The Product Name：: S15 small gateway multiple protocol bus device

The Product Type：: Wireless data transmission

Inquiry：

Corresponding field：: wireless data transmission industrial wireless system data transmission smart building

Parameters

Specification

User's Manual/Certification

Hardware resource
LED	1Rd.running light ,2Rd. RS485 lights ,1Rd. Ethernet light ,1Rd. wireless light
RS485	2 Rd.
Ethernet	2 Rd.
Extension	2G、4G、NB-IoT、LORA、WIFI
Working environment conditions
Working voltage	AC220V±20V 50Hz
Working temperature	-25...+70℃
Storage temperature	-40...+85℃
Relative humidity	≤95%RH，noncondensing
Work altitude	≤2000m
Protection level	IP20
Insulation	double insulation
Voltage withstand	2.5kV AC/1min
Communication interface
Interface	Two RJ45(100M), electrostatic 6 KV
Standards	IEEE 802.3
Communications agreements	Modbus TCP/IP,Modbus RTU,MQTT etc.
Electromagnetic Compatibility
Electrostatic discharge immunity	IEC 61000-4-2- III level
Radiofrequency electromagnetic radiation immunity	IEC 61000-4-3- III level
Immunity of electric fast transient pulse group	IEC 61000-4-4- IV level
Impact (surge) immunity	IEC 61000-4-5- IV level

S15 gateway is universial intergration gateway with compact design.It could collect multiple protocols including Modbus, Profitbus,DP,TCP/IP, MQTT,RTU etc.Measuring devices could upload data to the cloud platform or local HMI display. A complete set of Smart HMI tools supports the configuration of the device that hangs down and monitors its data or status.

Function		S15	S15-F	S15-T	S15-G	S15-N	S15-X-L
Communication Interface	RS485	√	√	√	√	√	√
	ENET	√	√	√	√	√	√
	NB-IoT					√
	WiFi		√
	2G				√
	LoRa						√
	4G			√
Interface Protocol	RS485	ModbusRTU DLT645	ModbusRTU DLT645	ModbusRTU DLT645	ModbusRTU DLT645	ModbusRTU DLT645	ModbusRTU DLT645
	ENET	ModbusTCP	ModbusTCP	ModbusTCP	ModbusTCP	ModbusTCP	ModbusTCP
	NB-IoT					HMU HJ212
	WiFi		ModbusTCP
	2G					HMU HJ212 AIMP
	LoRa						ModbusRTU DLT645
	4G					HMU HJ212 AIMP

Main function

■ Multi-agreement: support MODBUS-RTU、MODBUS-TCP、DLT645、MQTT etc.

■ Support not less than 4000 data point acquisition.

■ Status monitoring: you can see if the communication management machine under the hanging device is online.

■ Value display: you can view the value of the specific point of the online device.

■ Message debugging: manual message debugging.

■ Firmware upgrade: update firmware can be implemented via ethernet.

■ Configuration send: configuration update can be implemented via Ethernet.
