PD194Z-E14 AC multi-circuit power meter

The Product Name:
PD194Z-E14 AC multi-circuit power meter
The Product Type:
Multi-circuit monitoring system
Inquiry:
Corresponding field:
smart building smart metering smart building energy solutions device-to-infrastructure


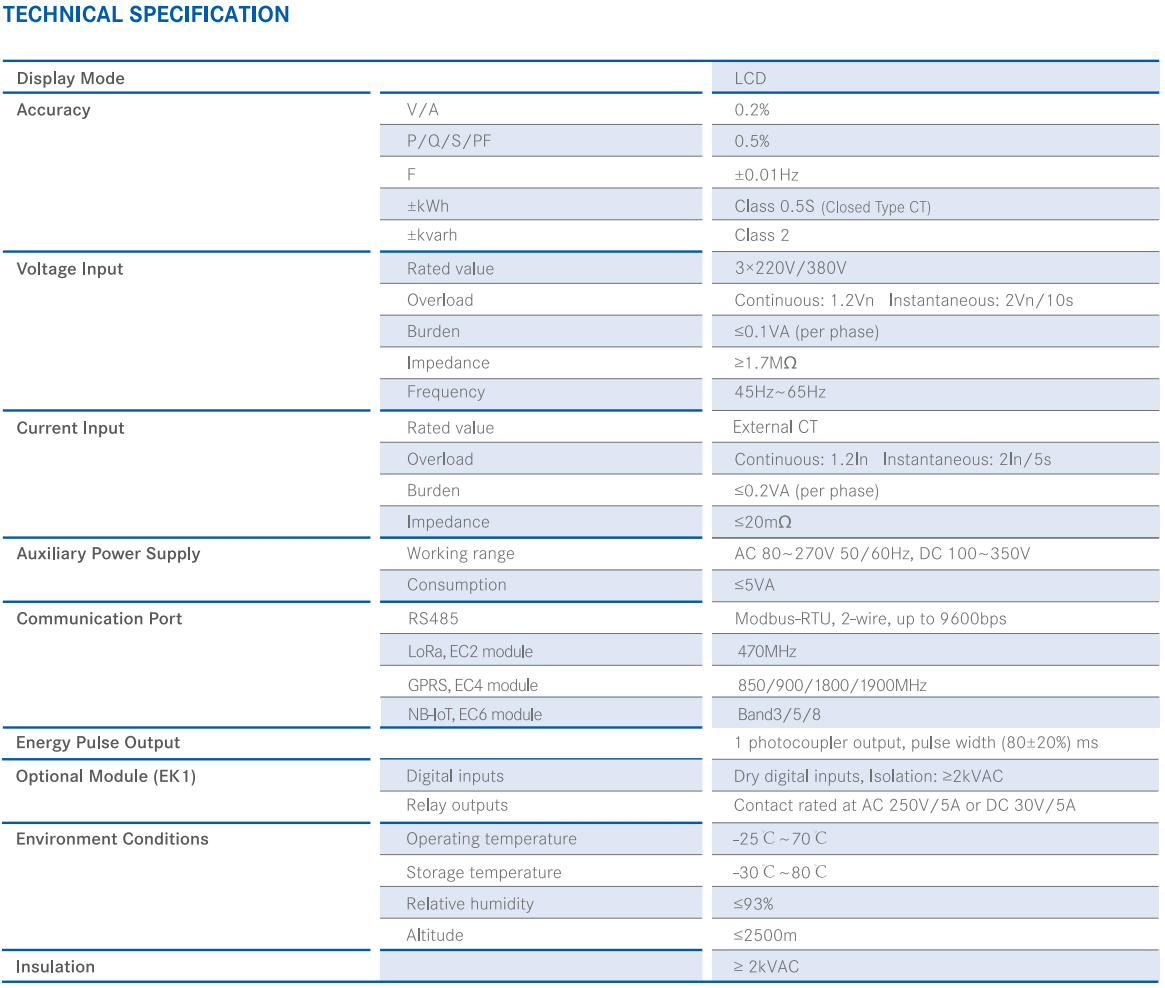

Display mode

LCD



Accuracy

V/A
0.2%
P/Q/S/PF
0.5%
F
±0.01Hz
±KWh
Class 0.5s
±Kvarh
Class 2



Voltage Input

Rated value
AC100V   AC380V
Overload
Continuous:1.2Vn  Instantaneous:2Vn/10s
Burden
≤0.1VA(per phase)
Impedance
≥1.7MΩ
Frequency
45Hz~65Hz


Current Input

Rated value
AC1A  AC5A
Overload
Continuous:1.2In  Instantaneous:2In/5s
Burden
≤0.2VA(per phase)
Impedance
≤20MΩ
Residual Current Input

AC 1mA


Auxiliary Power Supply

Working Range
AC 80~270V 50/60HZ ,DC 100~350V
Consumption
≤5VA



Communication Port


RS485,Modbus-RTU ,2-wire,up to 9600bps

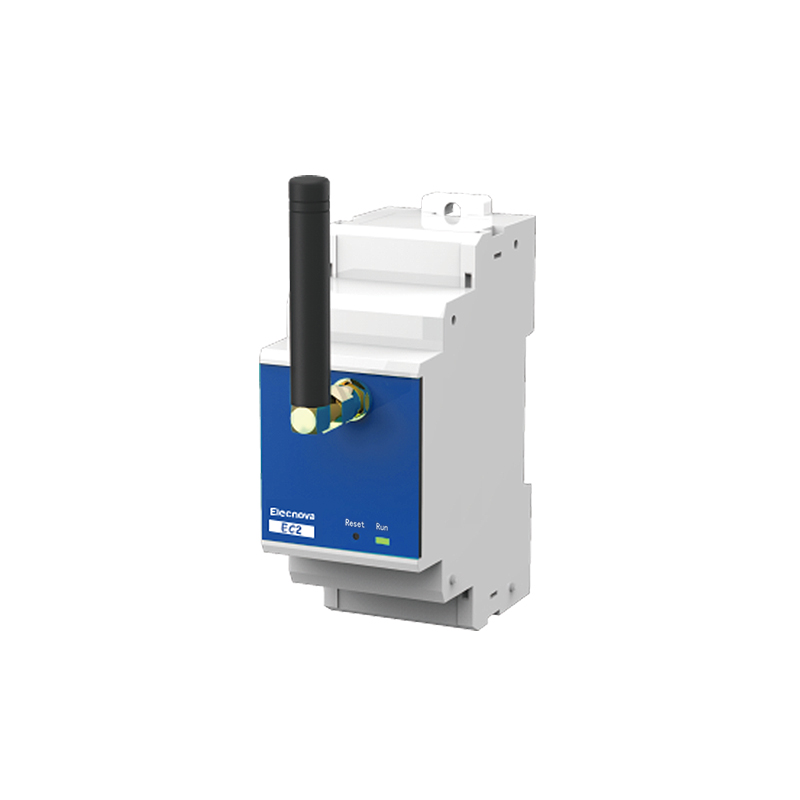

LORA EC2 module470MHZ

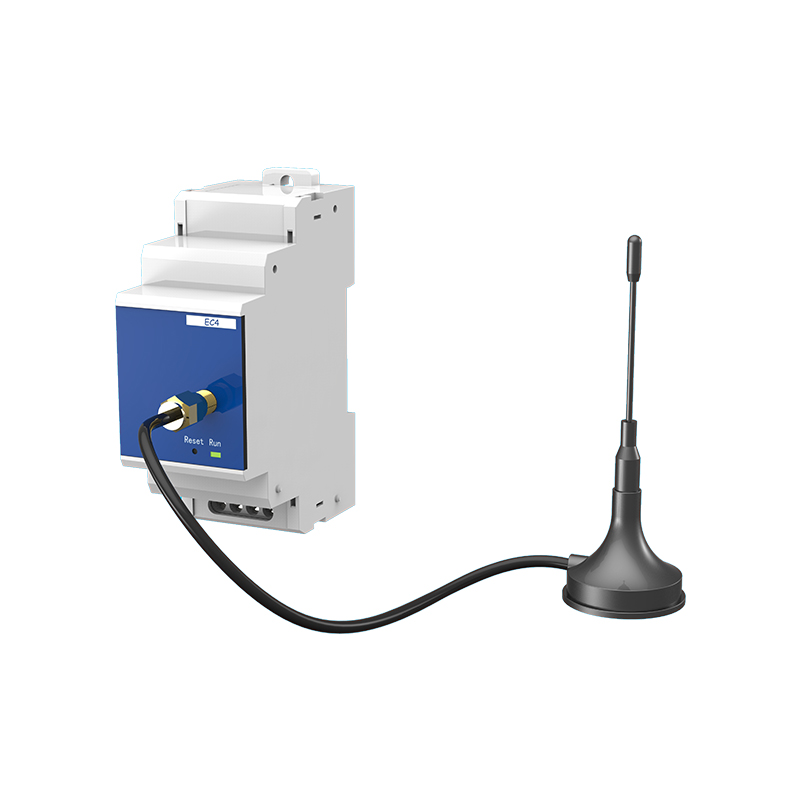

GPRS EC4 module850/900/1800/1900MHZ
NB-IOT EC6 moduleBand 3/5/8
Energy Pulse Output

1 photocoupler output,pulse width (80±20%)ms

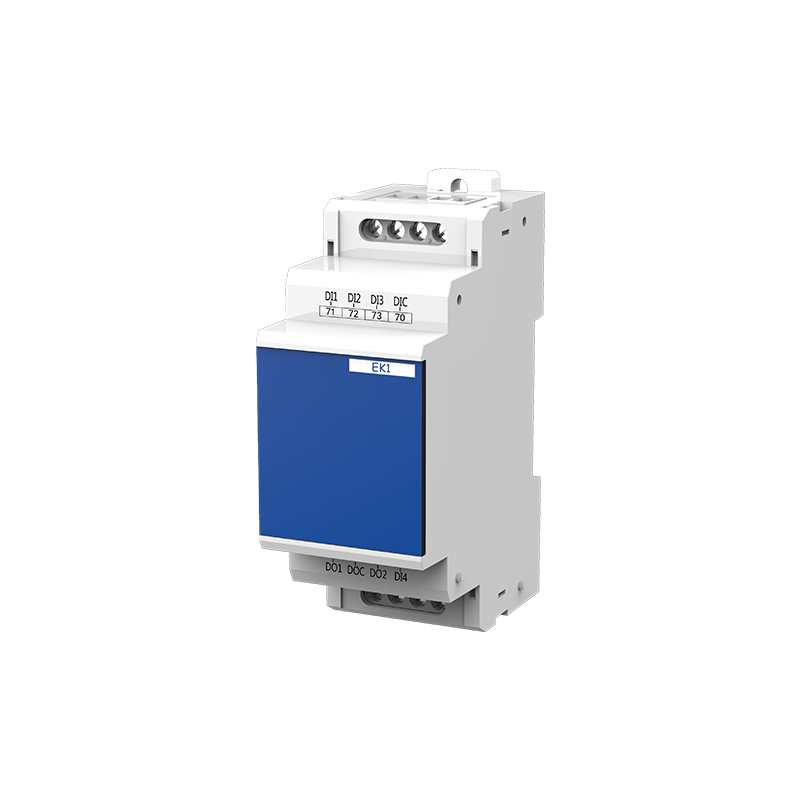

Optional Module(EK1)

Digital Inputs
Dry digital inputs,Isolation:≥2kvac
Relay outputs
Contact rated at AC 250/5A or DC 30V/5A



Environment Conditions

Operating temperature
-25℃~70℃
Storage temperature
-30℃~80℃
Relative humidity
≤93%
Altitude
≤2500m
Insulation

≥2kvac



Product Name:PD194Z-E14 AC multi-circuit power meter

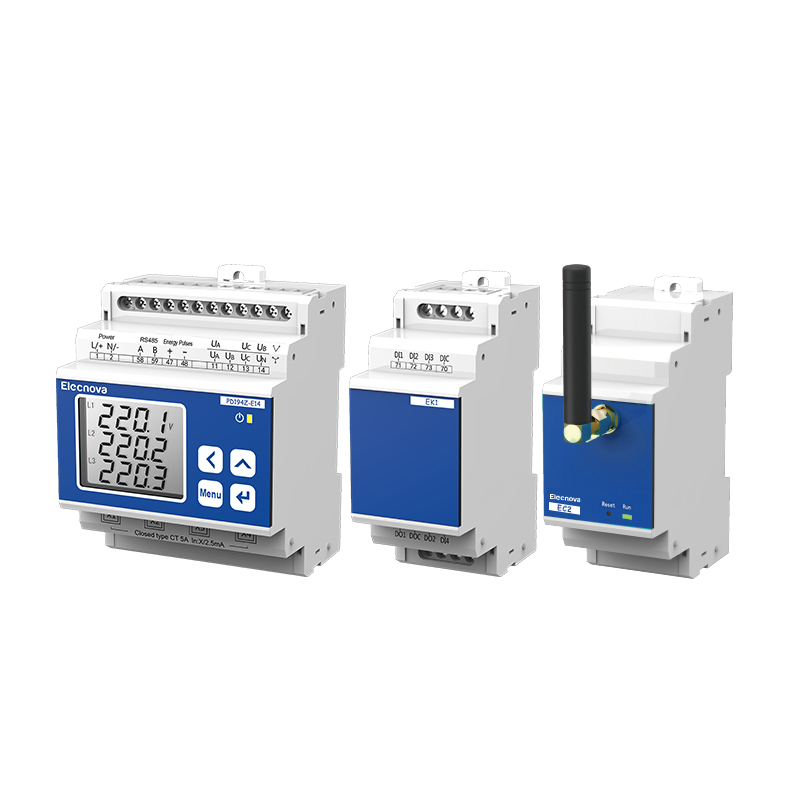

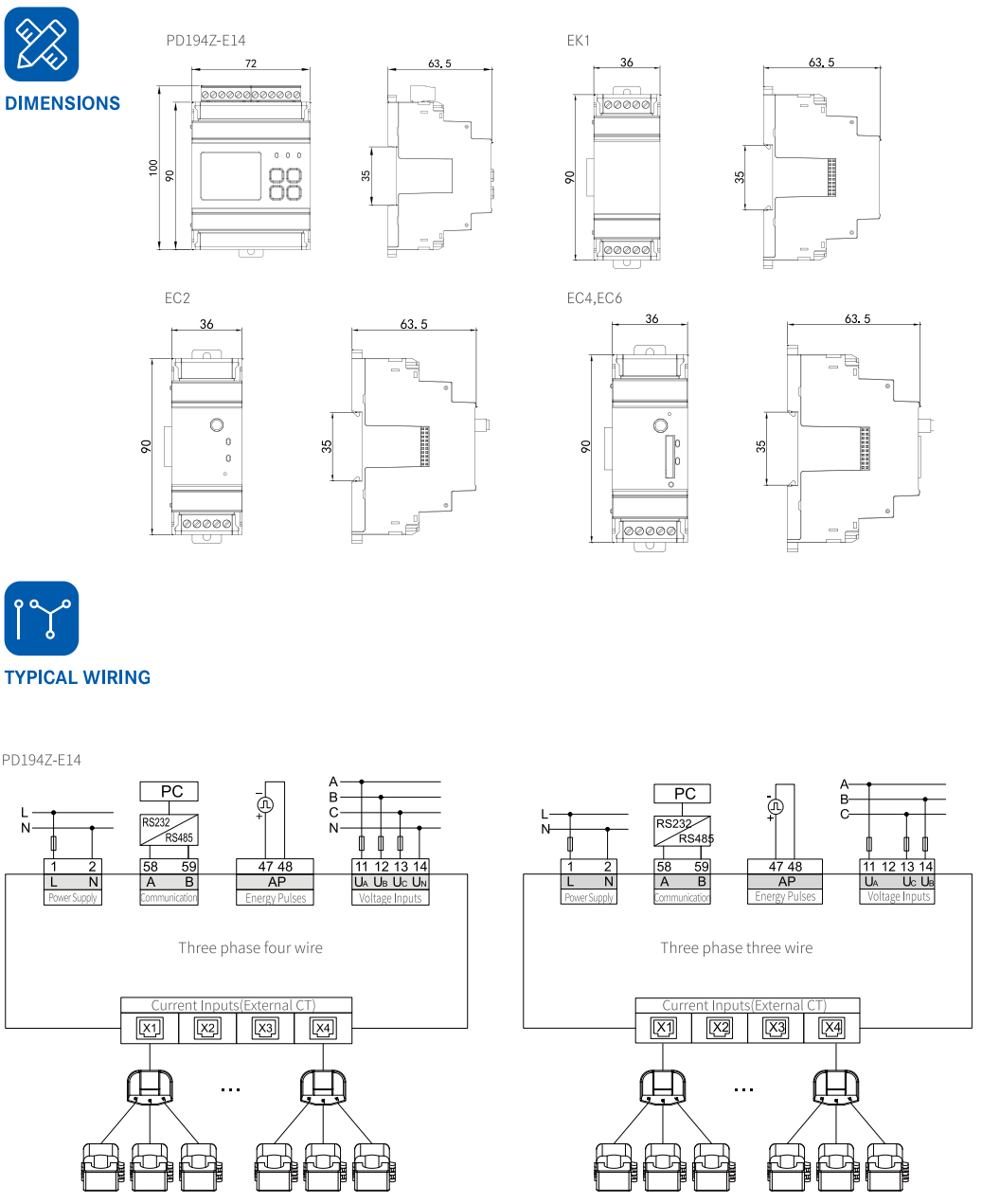

PD194Z-E14 is a multi channels power meter, with 12 channel 1 phase or 4 channel 3 phase power monitoring device in standard din rail  mounted design. Besides the basic RS485 communication, LoRa and  GPRS wireless data transmission are also available. It has an independent power supply module AC/DC(80~270V)  in 0.5 class measurement accuracy. Harmonic upto 31st as well.
