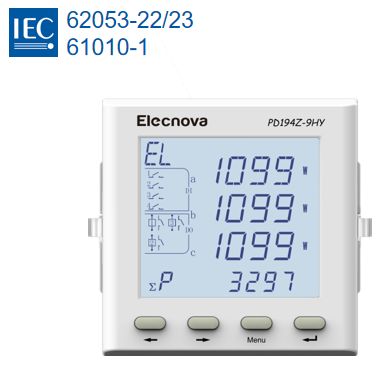

PD194Z-9HY multi-functional power meter

The Product Name:
PD194Z-9HY multi-functional power meter
The Product Type:
Multi-functional power meter
Inquiry:
Corresponding field:
industrial wireless system data transmission smart building smart metering


Feature

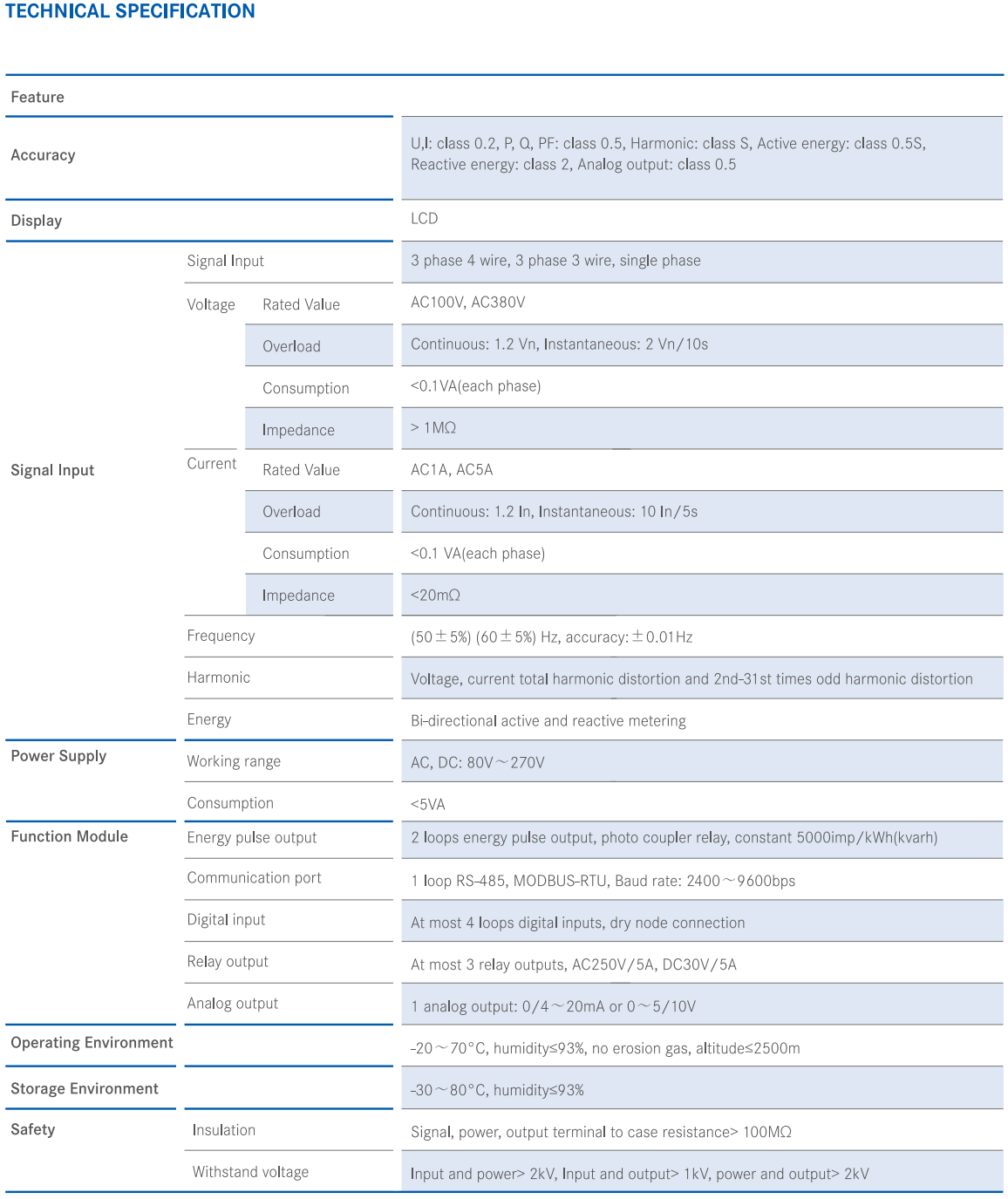

Parameters


Accuracy

U, I: 0.2 class, P, Q, PF: 0.5 class, Harmonic: A class,
Active energy: 0.5S class, Reactive energy: 2 class,
Analog output: 0.5 class
Display
LCD






Signal Input

Power Grid
3 phase 4 wire, 3 phase 3 wire, single phase
Voltage
Rated Value
AC100V, AC380V
Overload
Sustainable: 1.2 times, Instantaneous: 2 times/10s
Consumption
<0.1VA(each phase)
Impedance
>1MΩ
Current
Rated Value
AC1A, AC5A
Overload
Sustainable:1.2 times, Instantaneous:10 times/5s
Consumption
<0.1 VA(each phase)
Impedance
<20mΩ
Frequency
(50±5%)(60±5%)Hz, accuracy: ±0.01Hz
Harmonic
Voltage, current total harmonic distortion and 2-31 times odd harmonic distortion
Energy
Dual direction active and reactive metering

Power

Working range
AC, DC: 80V~270V
Consumption
<5VA


Function Module

Energy pulse output
2 loops energy pulse output, photo coupler relay, constant 5000imp/kWh (kvarh)

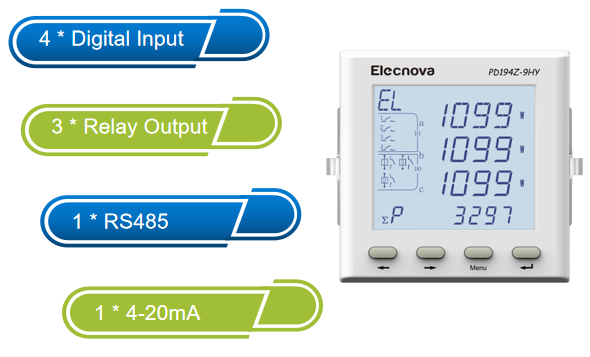

Communication port
1 loop RS-485,MODBUS-RTU, Baud rate: 2400~9600
Digital input
At most 4 loops digital invariables input, dry node connection
Relay output
At most 3 cycles relay output, AC250V/5A, DC30V/5A
Analog output
1 analog output: 0/4~20mA or 0~5/10V
Operating environment
-20~65℃, humidity ≤93%, no erosion gas, altitude≤2500m
Storage environment
-25~75℃,humidity≤93%
Safety
Insulation
Signal, power, output terminal to shell resistance>100MΩ
Withstand voltage
Input and power>2kV, Input and output>1kV, power and output>2kV
