PA195I-5K1 digital power DC ampere meter

The Product Name：: PA195I-5K1 digital power DC ampere meter

The Product Type：: Digital Power Meter

Inquiry：

Corresponding field：: solar power system solor power generation basic meter power measuring device

Parameters

Specification

User's Manual/Certification

Aaccuracy		0.5%(default),0.2%
Date Update Rate		1s
Input	Current	Rated value:AC 1A,5A
	Voltage	Rated value:AC 100V,220V,400V etc
	Overload	Continuous:2 times of rated value
	Frequency	45~65Hz
Safe Power Supply	Range	AC 80~270V 50/60Hz,DC 100~350V
Safe Power Supply	Consumption	≤5VA
Digital Input		2 dry contact inputs,Isolation:2kVAC
Relay Output		2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
Analog Output		dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
Communication Port		RS485,Modbus-RTU,2-WIRE,up tp 9600bps
Degree of Protection		Front:IP64,Rear :IP20
Operating Temperature		-40℃~70℃(LED),-25℃~70℃(LCD)
Storage Temperature		-45℃~85℃(LED),-30℃~80℃(LCD)
Relative Humidity		≤93%RH
Insulation		≥2kVAC
Altitude		≤2500m

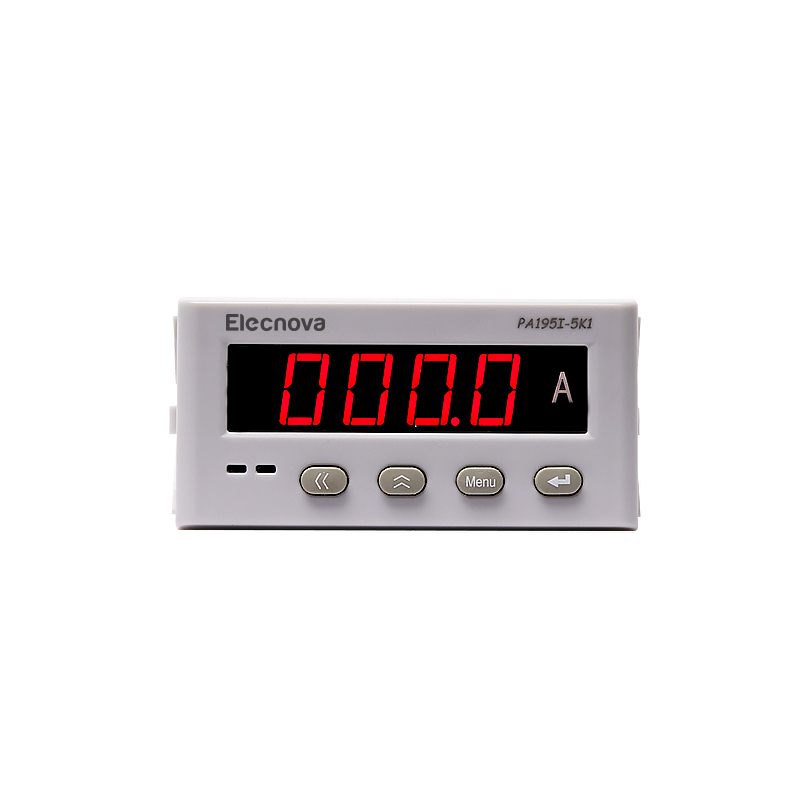

Product Name: PA195I-5K1 digital power DC ampere meter

Elecnova DC current power meter t can be applied to DC power management system,solar power system and EV-charger as wind power generation, solar photovoltaic power generation and industrial DC control system.It's programmable and with wide range of working temeprature. It measures fundamental V/A/P/E at 0.5% accuracy.
