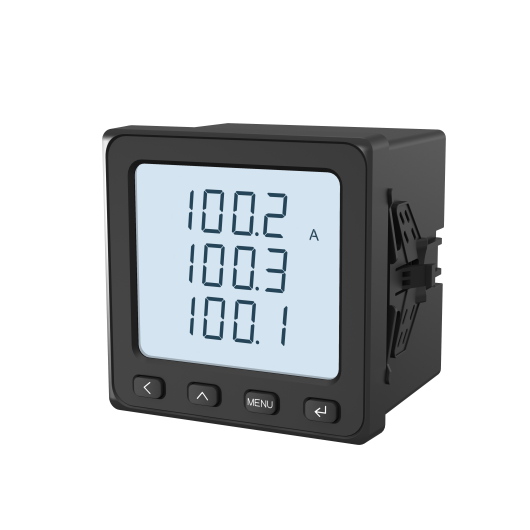

LNF96EY-C Multi-function Power Meter

Product Name: LNF96EY-C Multi-function Power Meter

Elecnova LNF96EY-C is a 96*96mm front panel meter with big LCD display and Modbus-RTU communication protocol by RS485 interface. This is high precise digital power meter provides fundamental electric parameters I/U/P/Q/S/F/PF and an basic power quality analyzer. Equipped with  2-15th individual harmonic display and 4-quadrants reactive energy measuring. The bi-directional energy measuring function could fulfil the solar power plant or diesel generator for dual energy measuring. Any 3rd party management software could integrated the measuring data from LNF96EY-C digital panel meter.

Wiring Diagram

        3P4W,3CT, NO PT                        3P4W, 3CT, 3PT                            3P3W, 2CT, NO PT                     3P3W, 2CT, 2PT
