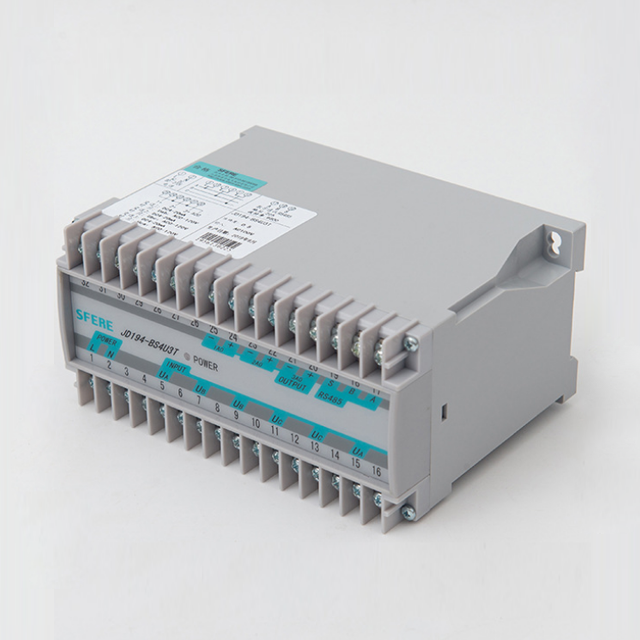

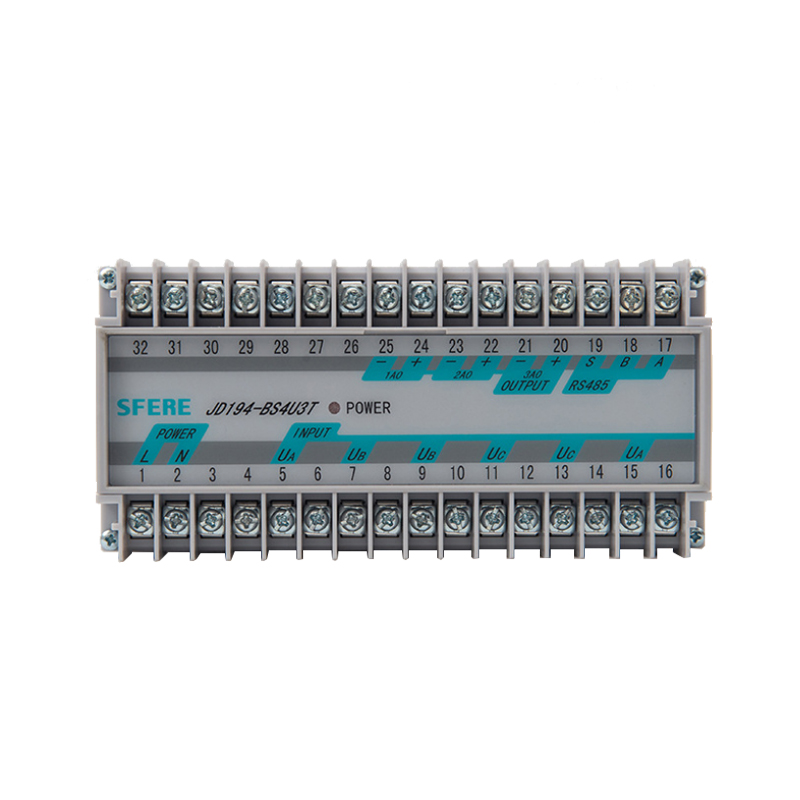

JD194-BS4U3T three phase voltage transmitter

The Product Name：: JD194-BS4U3T three phase voltage transmitter

The Product Type：: Transmitter

Inquiry：

Corresponding field：: electric power electrical installations automatic control system dispatching systems PLC control system

Parameters

Specification

User's Manual/Certification

Accuracy		0.5%
Data update rate		1s
Input	current	rated value:AC 1A,5A
	voltage	rated value:AC 100v,220v,400v etc
	overload	continuous:2 times of rated value
	frequency	45~65HZ
Safe power supply	range	AC 80~270V 50/60HZ ,DC 100~350V
Safe power supply	consumption	≤5VA
Analog output		DC 4~20mA,load≤350Ω DC 0~5v，load≥20kΩ
Communcation		rs485 port ,modbus-rtu ,2 wire ,up to 9600bps
Operating Temperature		-40~70℃
Storage Temperature		-40~85℃
Relative Humidity		≤93%RH
Insulation		≥2kVAC
Altitude		≤2500m

Product Name:JD194-BS4U3T three phase voltage transmitter

JD194-BS4I3T three phase voltage transmitter with RS-485 surface and Modbus protocol is used for measuring three phase voltage signal, isolated transmission and output three ways of 4-20mA signal.

Country specific Approal

Logo
Approval
LVD&EMC（CE）
Ref.Standard
EN61010-1:2010; EN61326-1：2013
Cerificate No.
0266/IN-IST-14
Download

User's Manual
