DDSF1946-2P din rail mounted energy meter

The Product Name:
DDSF1946-2P din rail mounted energy meter
The Product Type:
Din Rail Power Meter
Inquiry:
Corresponding field:
smart building energy monitoring power box, distribution box or wall protection box energy measurement terminal lighting energy measurement wall mounted meter remould




DDS1946-1P
DDSF1946-1P
DDS1946-2P
DDSF1946-2P
DDS1946
DDSF1946
DSS1946
DSSF1946
DTS1946
DTSF1946

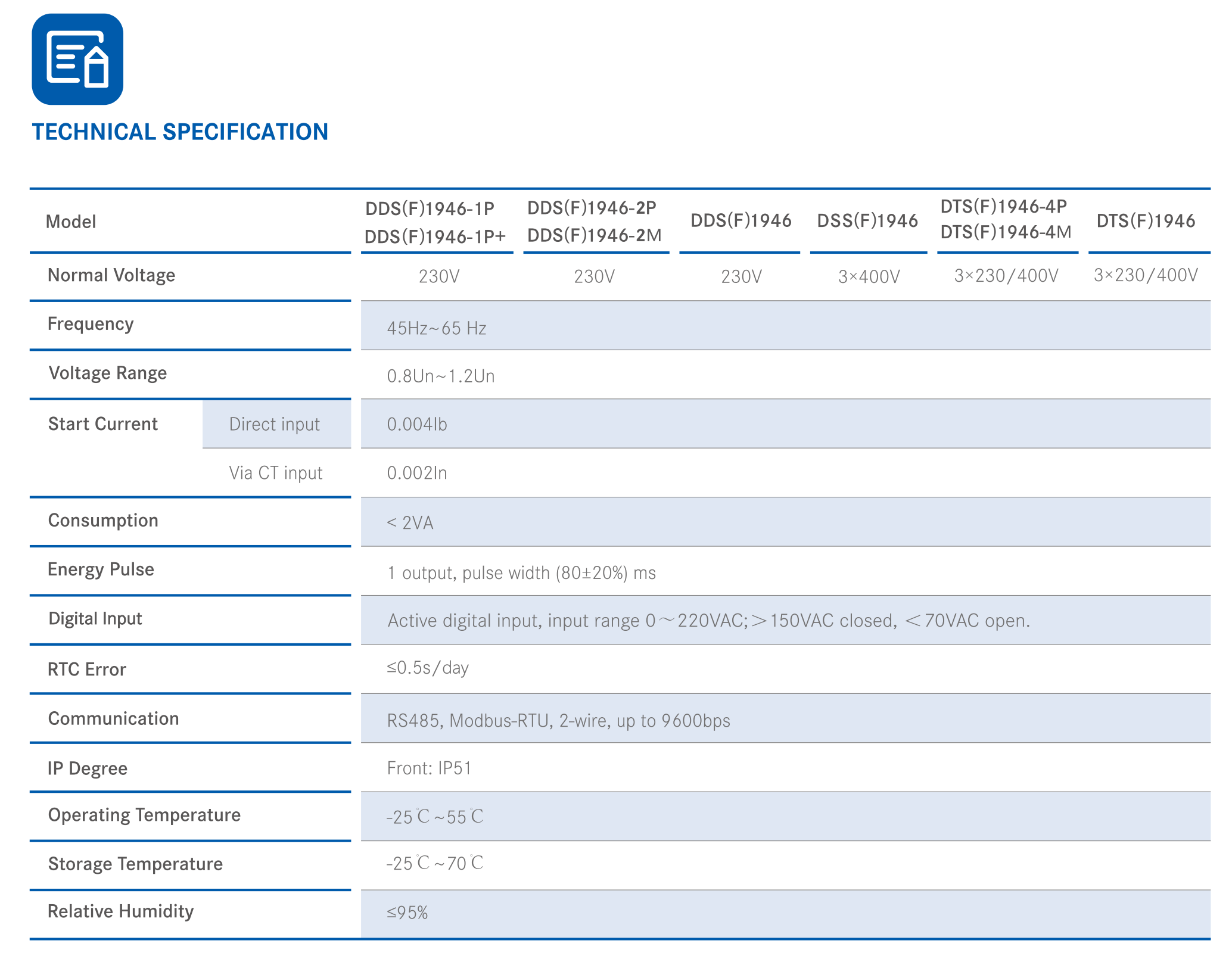

Normal Voltage

230V
230V
230V
3*400V
3*230/400V
Current
Direct input
5(40)A
5(100)A
5(100)A
5(100)A
5(100)A
Via CT input
-
-
1.5(6)A
1.5(6)A
1.5(6)A
Accuracy

Class 1(Optional:Class 0.5S)
Frequency

45Hz~65Hz
Voltage Range

0.8Un~1.2Un
Start Current
Direct input
0.004Ib
Via CT input
0.002In
Consumption
<2VA
Energy Pulse
1 output, pulse width (80±20%) ms
RTC Error
≤0.5s/day
Communication
RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree
Front: IP51
Operating Temperature
-10℃ ~ 55℃
Storage Temperature
-25℃ ~ 70℃
Relative Humidity
≤93%

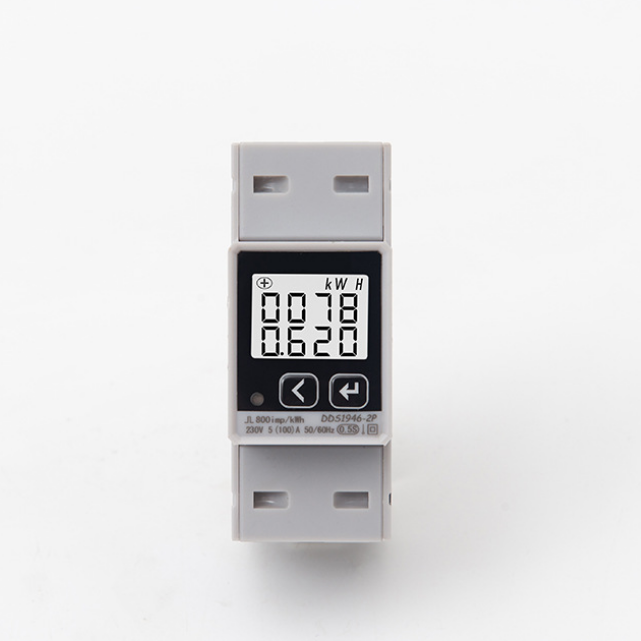

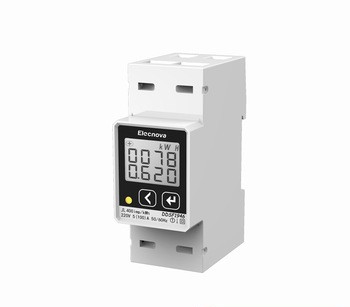

Product Name: DDSF1946-2P din rail mounted energy meter

DDSF1946-2P din rail mounted energy meter can directly input 5(63)A, 220V single phase. it is designed and produced according to user’s real electricity consumption situation,Itemized measurement and parameter programmable. It has TOU multi rate function, adopt modularity structure with the features such as small volume, convenient installation and reliable working.
