BCM101 AC Intelligent measurement and control device

The Product Name:
BCM101 AC Intelligent measurement and control device
The Product Type:
Multi-circuit monitoring system
Inquiry:
Corresponding field:
data center monitoring smart building smart metering smart building energy solutions

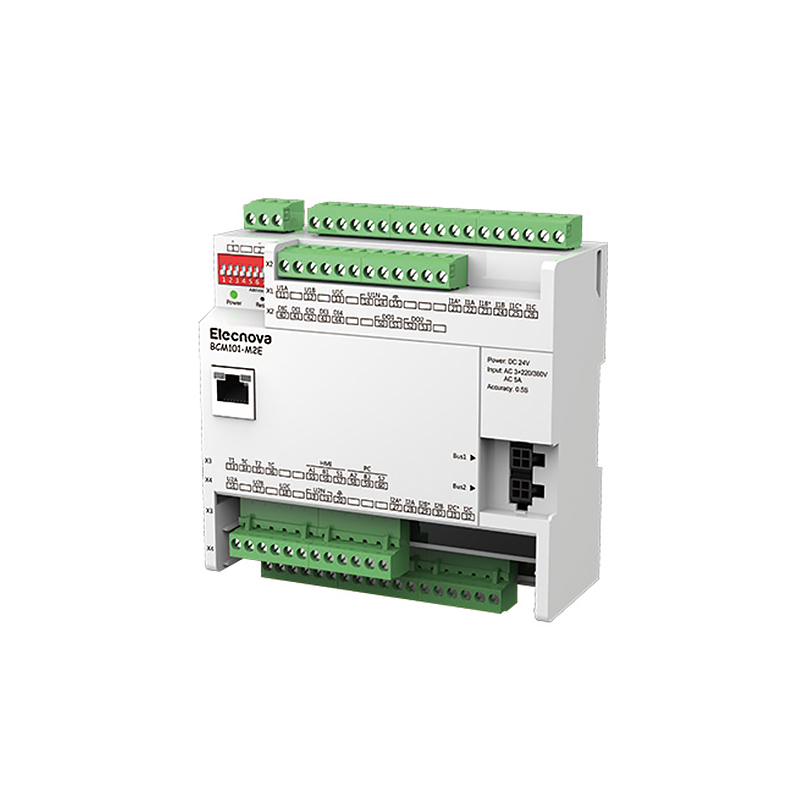

ModuleBCM101-M2 Incoming line Module
AccuracyU/I 0.2, P/Q/PF: 0.5
Signal  input

Voltage:    3 phase 3*220/380V

                 1 phase AC 220V

Currency:   AC 5A / AC 1A
Frequency45~65Hz, Accuracy: ±0.01Hz
Switching ValueType: 4 Circurt, Dry contact
Withstand voltage: 2kV AC
Relay output

Capacity: 2 Circurt, AC250V/5A DC30V/3A

Withstand voltage: 2kV AC
Communication

2 circurt RS485, Modbus-RTU,

1 circurt RJ45, Modbus-TCP(option)
PowerDC:24V
Installation 126*133*50mm,Din rail 35mm

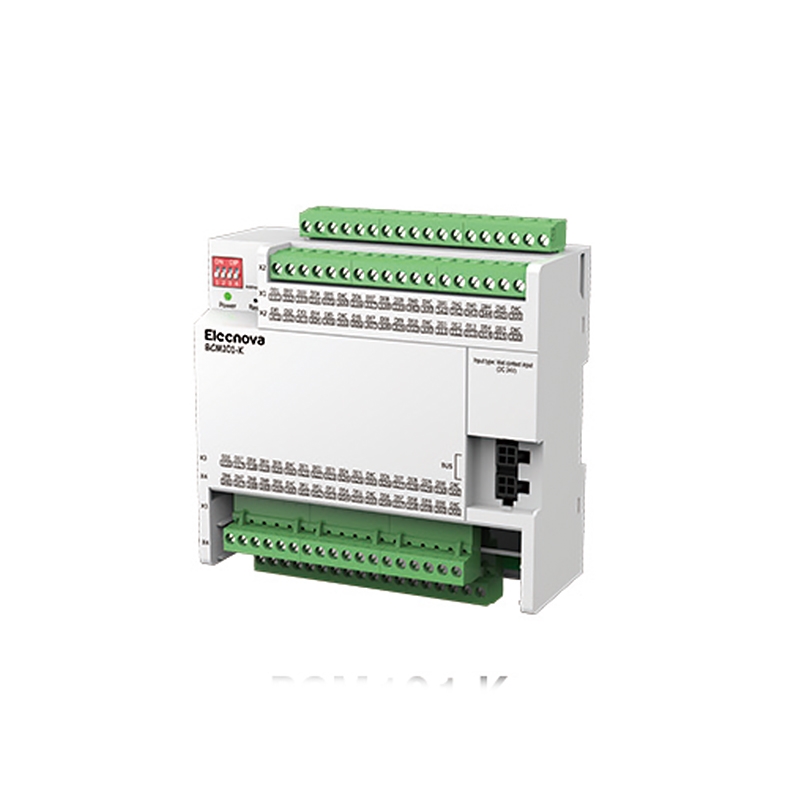

ModuleBCM101K Switching Value(Option)
  Circurt
60 Circurt, Wet contact
  Input Voltage
  DC24V±2V
Inslation
  2kV
  Wire contact
  2
  Installation
 126*133*50mm, Din rail 35mm

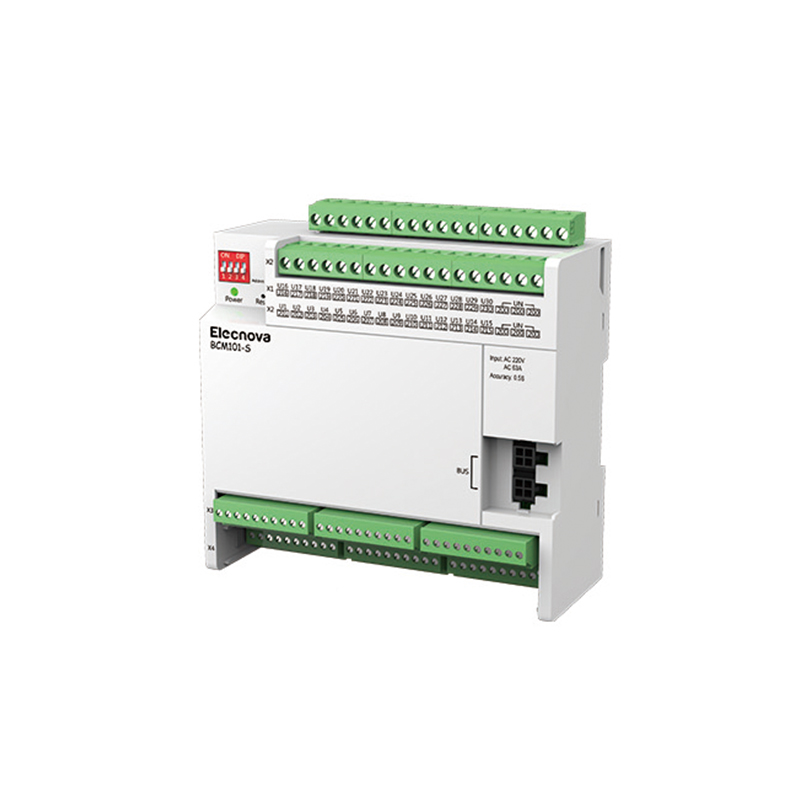

ModuleBCM-101-S, Feeder monitoring
Accuracy
U/I 0.2, P/Q/PF: 0.5

Signal input

Voltage: 1 phase AC 220V
Overload: 1.2Un continuing
2Un/1 min instant
Currency: 100A(External CT)
Overlaod: 1.2ln continuing
10ln/5s
Frequency
45~65Hz, Accuracy: ±0.1Hz


Switching Value

30 circurt, voltage value determines the breaker Close/Open , Voltage>120 Close, Voltagge <110V Open
Wire contact
2
Installation
126*125*50mm,Din rail 35mm

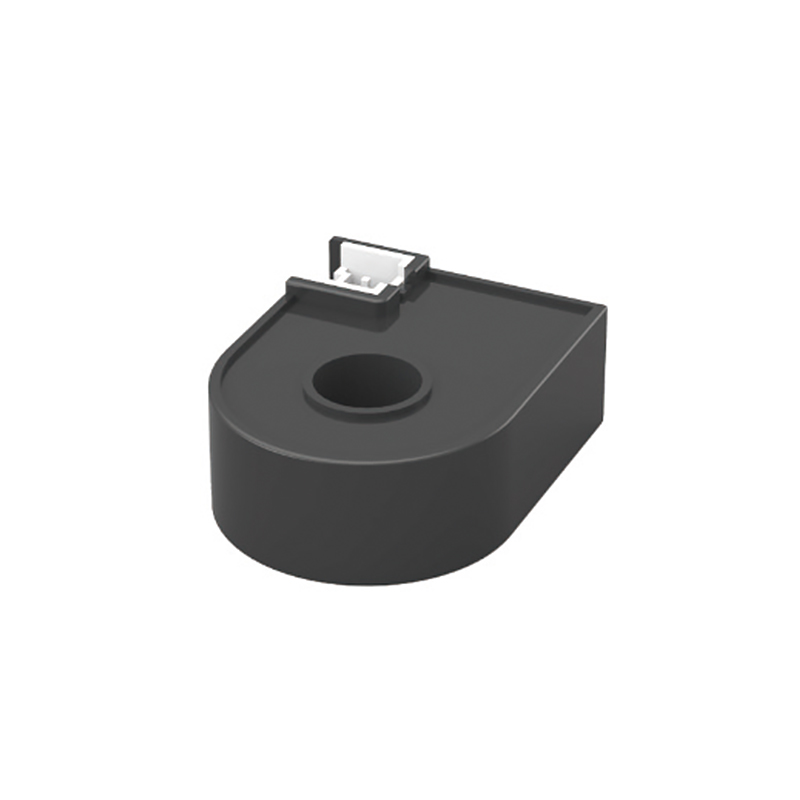

ModuleSHI-BCT50II\SHI-BCT100II
Rated 5(50)A\5(100)A
Accuracy0.1s
Overload1.2Un continuing,10Un/5 min instant
Consumption≤0.2VA
Impedance≤20mΩ


Installation

5(50)A-L x W x H(mm):26*33.5*11.5
5(100)A-L x W x H(mm):45*52.5*17.5

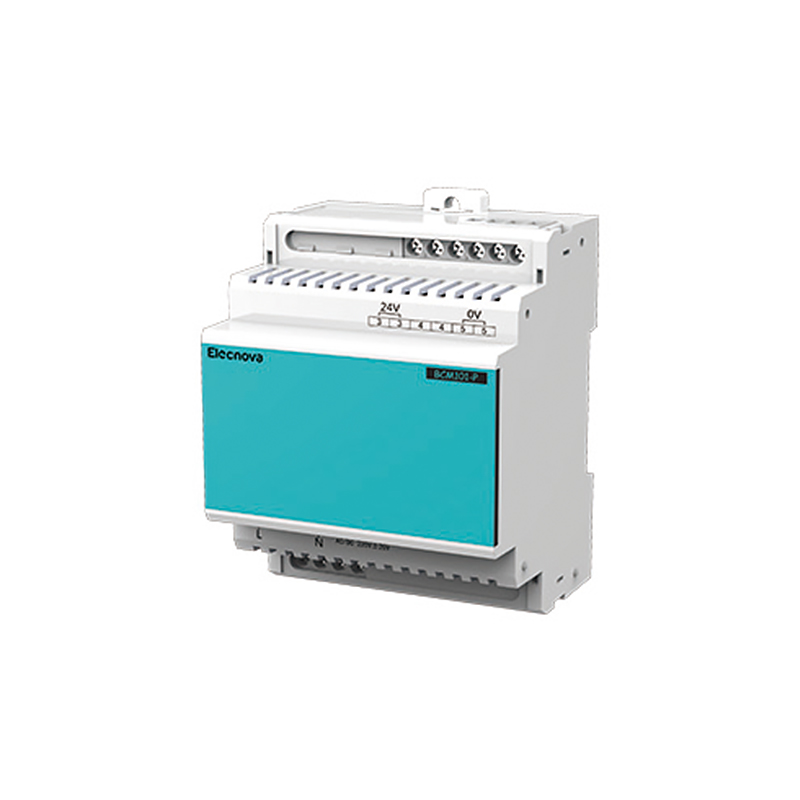

ModuleBCM101-P Display unit
Input voltage rangeAC180V~260V,DC200V~370V
Output nominal valueDC24V
output power≤20W
efficacy>75%
Dielectric strengthAC 2KV/min
installationL x W x H(mm):36x90x63.5

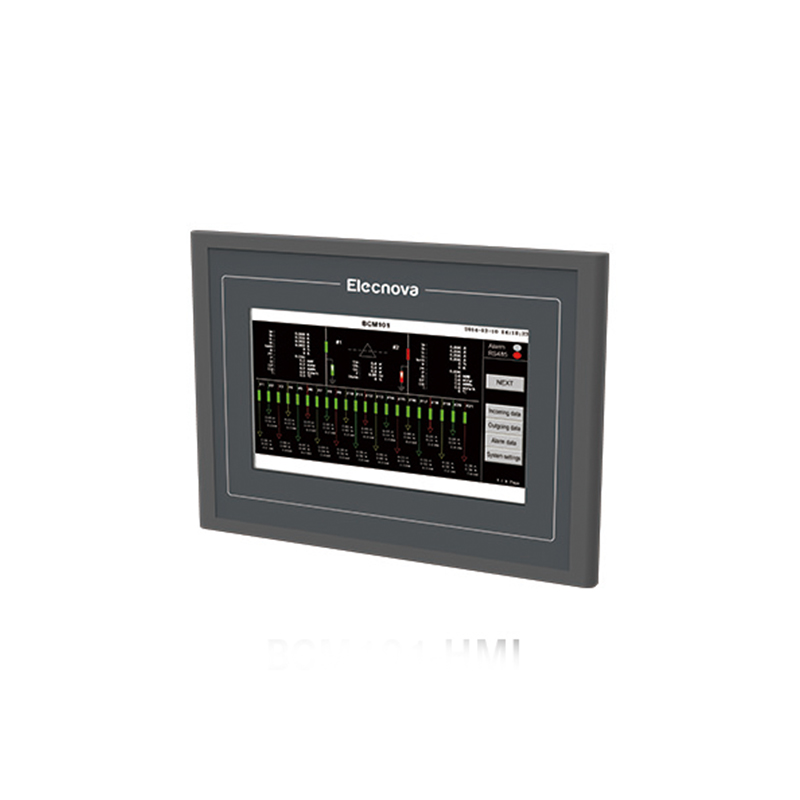

ModuleBCM101-HMI Display unit
Display7” LCD touch screen


contact

RS485Modbus-RTU
USBUSB2.0


current

The scope of workDC:(24±20%)V
Power consumption≤5W
Installation
Hole Size: 215mmx152mm,Screen

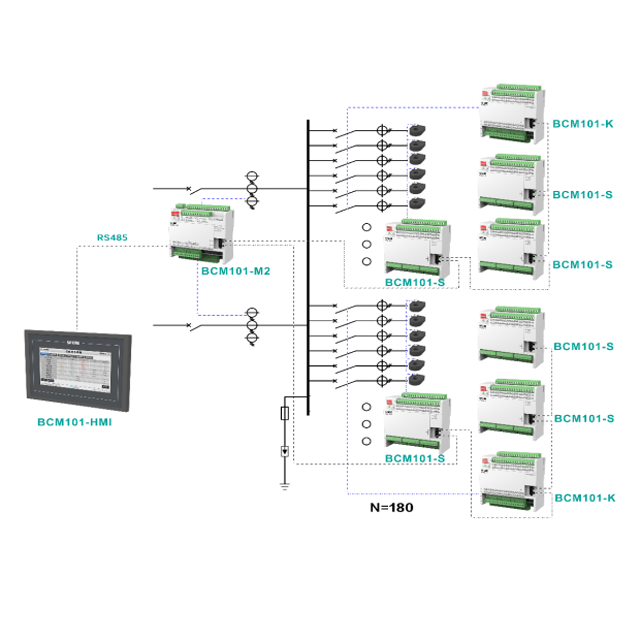

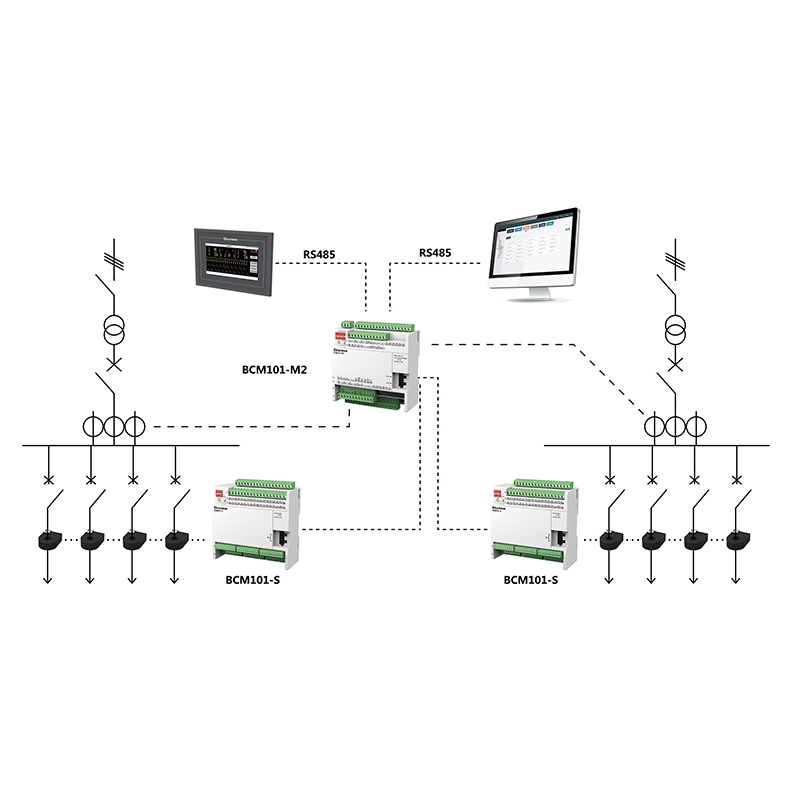

BCM101 intelligent power monitoring system is specialized for the array cabinet for precise power distribution and electric parameter data monitoring for the data center and base station of ICT (information and communication technology). It supervised the status of the circuit breaker and the voltage, current, energy and harmonic of the inline and feeder sub branch. The user could configure 2levels of current overload alarm to prevent the potential power supply error.


Advantages:

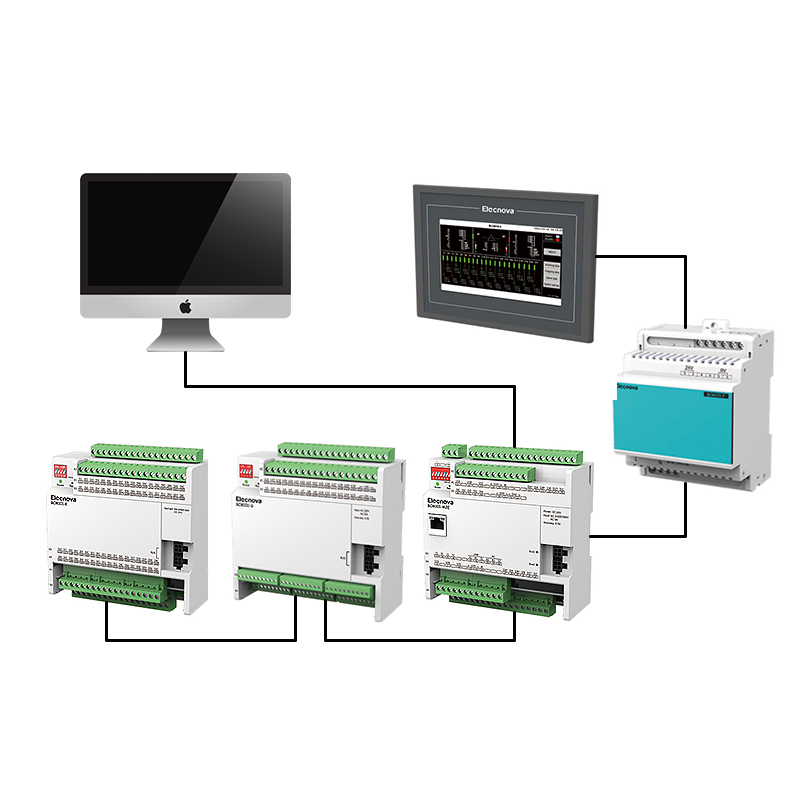

Modular design: inline monitoring module, feeder monitoring module, D/I monitoring module and display module

7” HMI

RS485/Ethenet interface

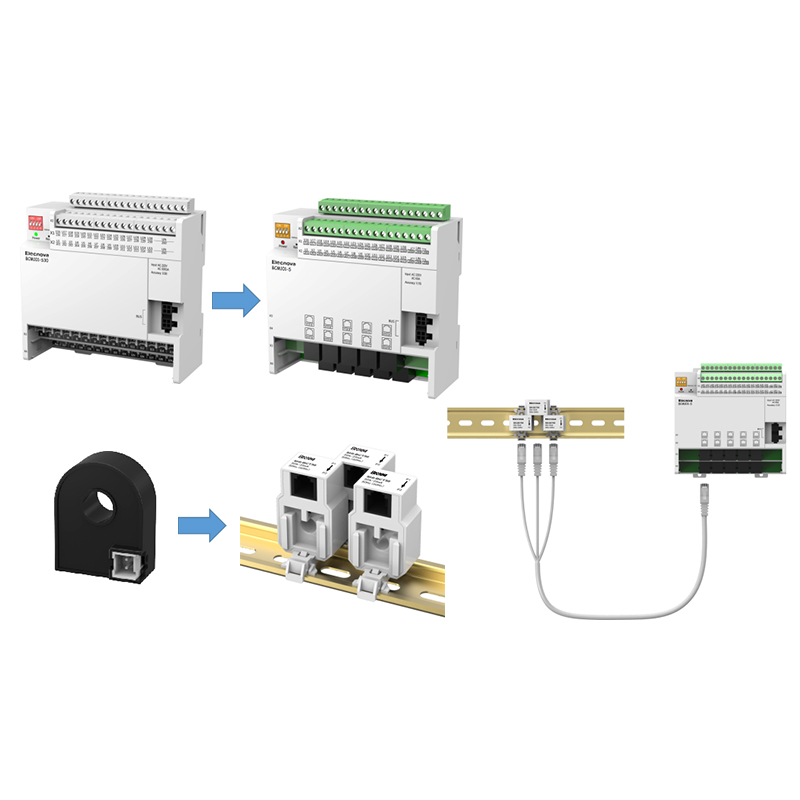

Plug-in CT with exclusive cable, easy installation

0.1S accuracy
